Iscar ISCAR 6403304
Iscar 6403304 CUT-GRIP Double End Threading Insert, TIP Insert, Rectangle Shape, 13 TPI, External Thread, 60 deg Partial Profile Thread, 1.94 mm Pitch, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
Tip 5mt-0.25 Ic908
Factory Order

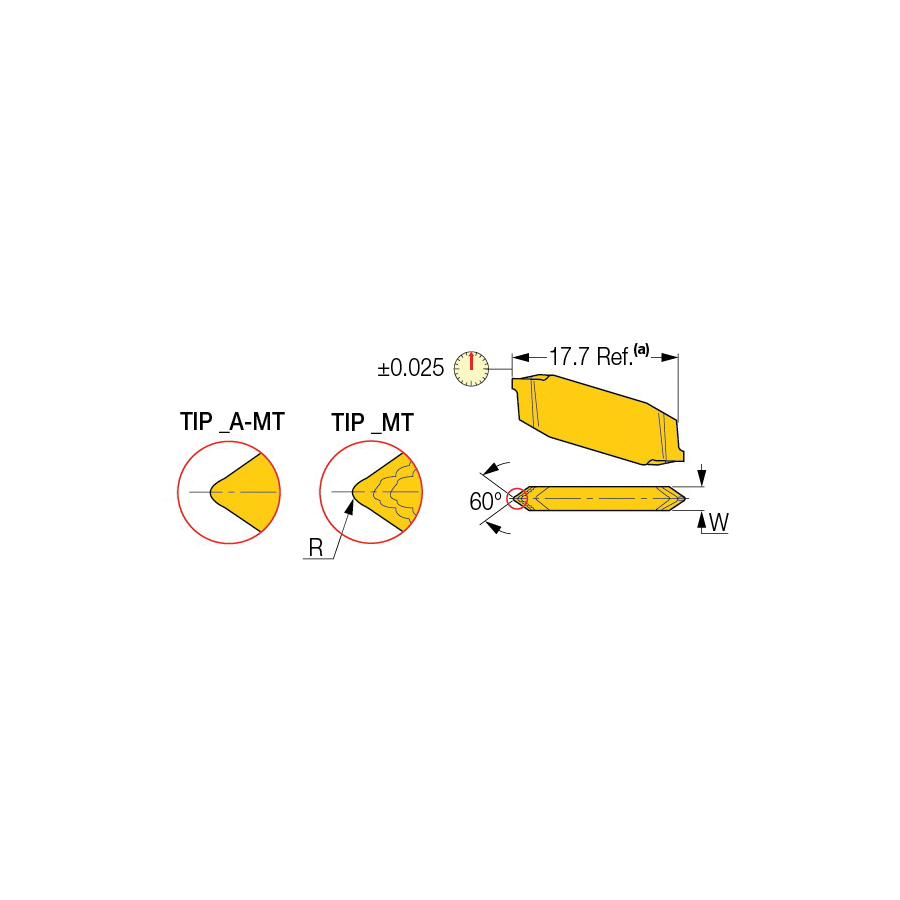

Iscar Threading Insert, Double End, Series: CUT-GRIP, TIP Insert, 5 Insert, Rectangle Shape, External Thread, 60 deg Partial Profile Thread Standard, 1.94 mm Pitch, 13 Threads per Inch, 5.5 mm Thickness, 17.7 mm Length, ISO Code: TIP 5MT-0.25 IC908, 0.25 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Groove Turn Threading and Internal Threading
Corner Radius0.25 mm
FinishPVD-TiAlN Coated
Included Angle60 deg
Insert Size5
Insert StyleTIP
ISO CodeTIP 5MT-0.25 IC908
Length17.7 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch1.94 mm
SeriesCUT-GRIP
ShapeRectangle
Thickness5.5 mm
Thread Standard60 deg Partial Profile
Thread TypeExternal
Threads per Inch13
TypeDouble End
