Iscar ISCAR 6403303

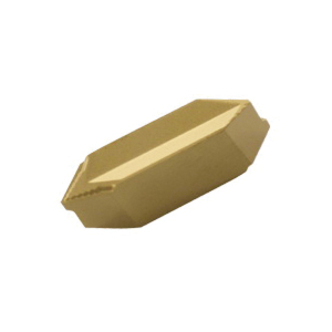

Iscar 6403303 CUT-GRIP Double End Threading Insert, TIP Insert, Rectangle Shape, 16 TPI, External Thread, 60 deg Partial Profile Thread, 1.63 mm Pitch, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

Invoice description: Tip 4mt-0.20 Ic908

UNSPSC: 23242107
Manufacturer PN: 6403303
$50.78 EA
Factory Order
Estimated to ship in 14 days
QTY:

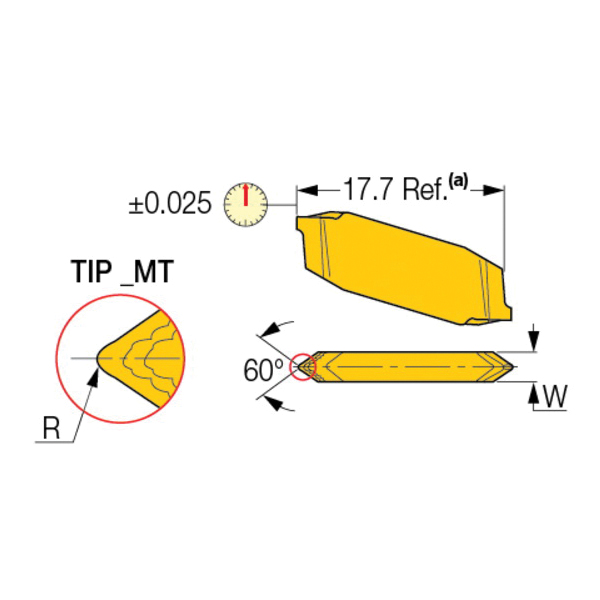

Iscar Threading Insert, Double End, Series: CUT-GRIP, TIP Insert, 4 Insert, Rectangle Shape, External Thread, 60 deg Partial Profile Thread Standard, 1.63 mm Pitch, 16 Threads per Inch, 4 mm Thickness, 17.7 mm Length, ISO Code: TIP 4MT-0.20 IC908, 0.2 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

Corner Radius0.2 mm
FinishPVD-TiAlN Coated
Included Angle60 deg
Insert Size4
Insert StyleTIP
ISO CodeTIP 4MT-0.20 IC908
Length17.7 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch1.63 mm
SeriesCUT-GRIP
ShapeRectangle
Thickness4 mm
Thread Standard60 deg Partial Profile
Thread TypeExternal
Threads per Inch16
TypeDouble End

Additional Information

Country of OriginIL
