Iscar ISCAR 6403056

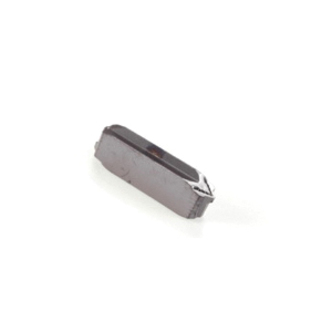

Iscar 6403056 CUT-GRIP Double End Threading Insert, TIP Insert, Rectangle Shape, External Thread, ISO Thread, 1.5 mm Pitch, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6403056
$48.32 EA
Factory Order
Estimated to ship in 14 days
QTY:

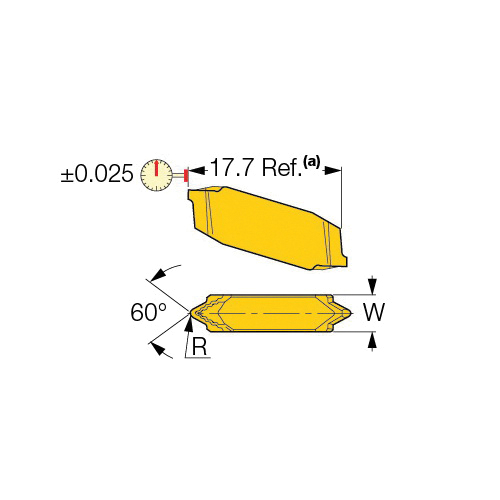

Iscar Threading Insert, Double End, Series: CUT-GRIP, TIP Insert, 02 Insert, Rectangle Shape, External Thread, ISO Thread Standard, 1.5 mm Pitch, 2.4 mm Thickness, 17.7 mm Length, ISO Code: TIP 2P1.5-ISO IC908, 0.23 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

Corner Radius0.23 mm
FinishPVD-TiAlN Coated
Included Angle60 deg
Insert Size02
Insert StyleTIP
ISO CodeTIP 2P1.5-ISO IC908
Length17.7 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch1.5 mm
SeriesCUT-GRIP
ShapeRectangle
Thickness2.4 mm
Thread StandardISO
Thread TypeExternal
TypeDouble End
