Iscar ISCAR 6402488

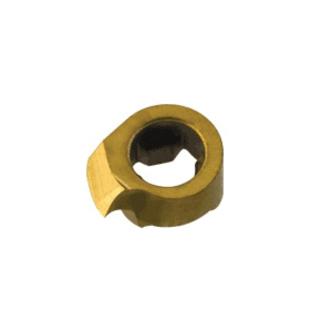

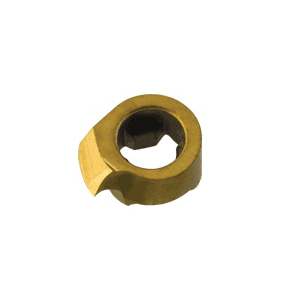

Iscar 6402488 CHAMGROOVE Threading Insert, GIQR Insert, 28 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.9 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC528, Material Grade: M, P, S

Pack Size: 10
UNSPSC: 23242107
Manufacturer PN: 6402488
$40.80 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Threading Insert, Series: CHAMGROOVE, GIQR Insert, 8 Insert, Internal Thread, 60 deg Partial Profile Thread Standard, 0.9 mm Pitch, 28 Threads per Inch, 7.78 mm Length, ISO Code: GIQR 8-MT-0.05 IC528, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC528, Right Hand Cutting Direction, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P, S

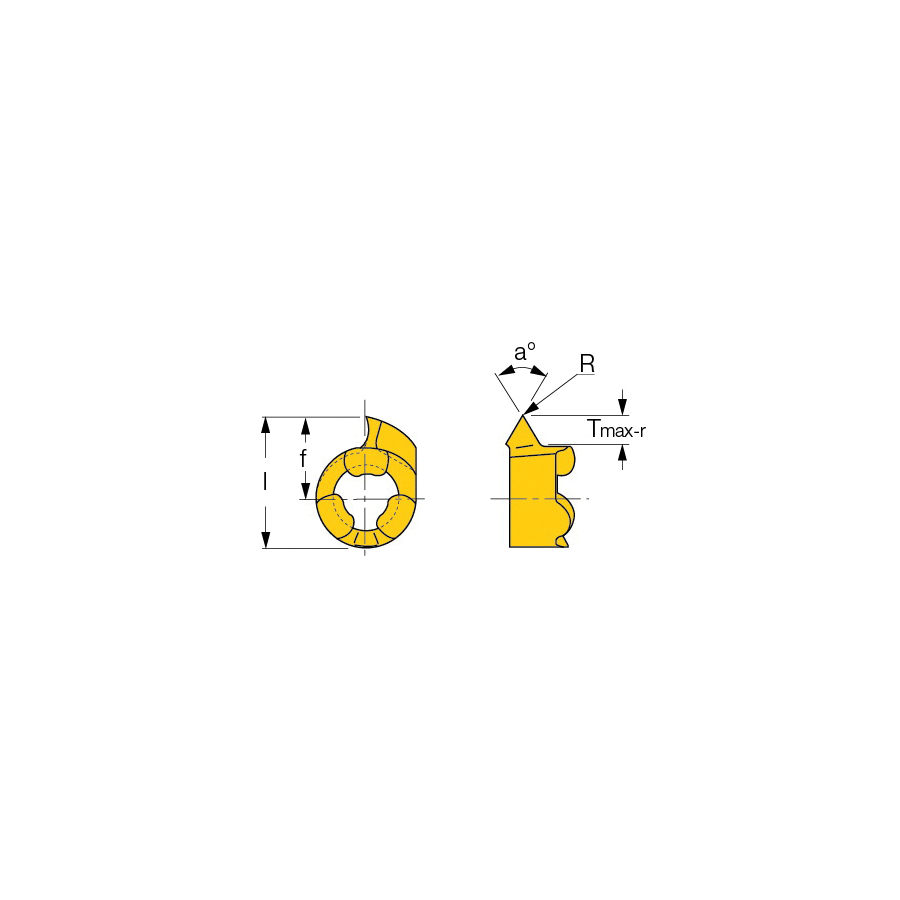

Specifications

ApplicationInternal Threading
Corner Radius0.05 mm
Cutting DirectionRight Hand
FinishPVD-TiCN+TiN Coated
Included Angle60 deg
Insert Size8
Insert StyleGIQR
ISO CodeGIQR 8-MT-0.05 IC528
Length7.78 mm
Manufacturers GradeIC528
MaterialCarbide
Material GradeM, P, S
Pitch0.9 mm
SeriesCHAMGROOVE
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch28
