Iscar ISCAR 5998143

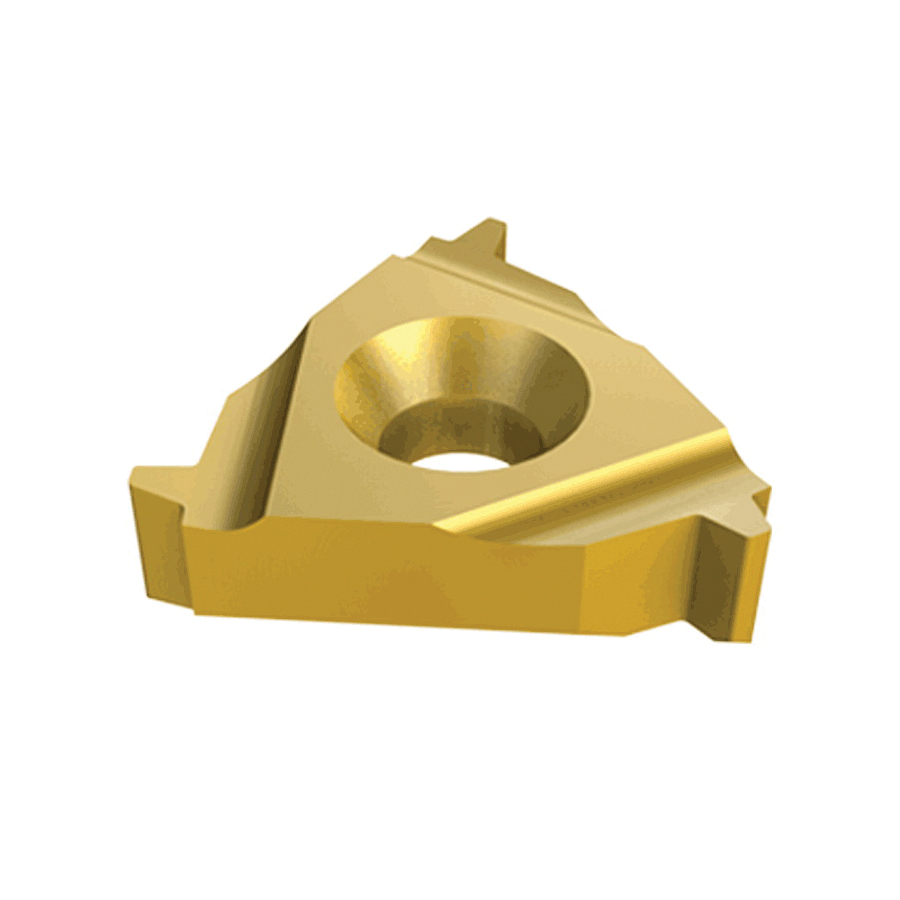

Iscar 5998143 Laydown Threading Insert, 27UERL Insert, Triangular Shape, External Thread, Trapezoidal Thread, 9 mm Pitch, Left Hand/Right Hand Cutting, Manufacturers Grade: IC250, Material Grade: M, P
Invoice description:
27uerl 9 Tr Ic250
Factory Order

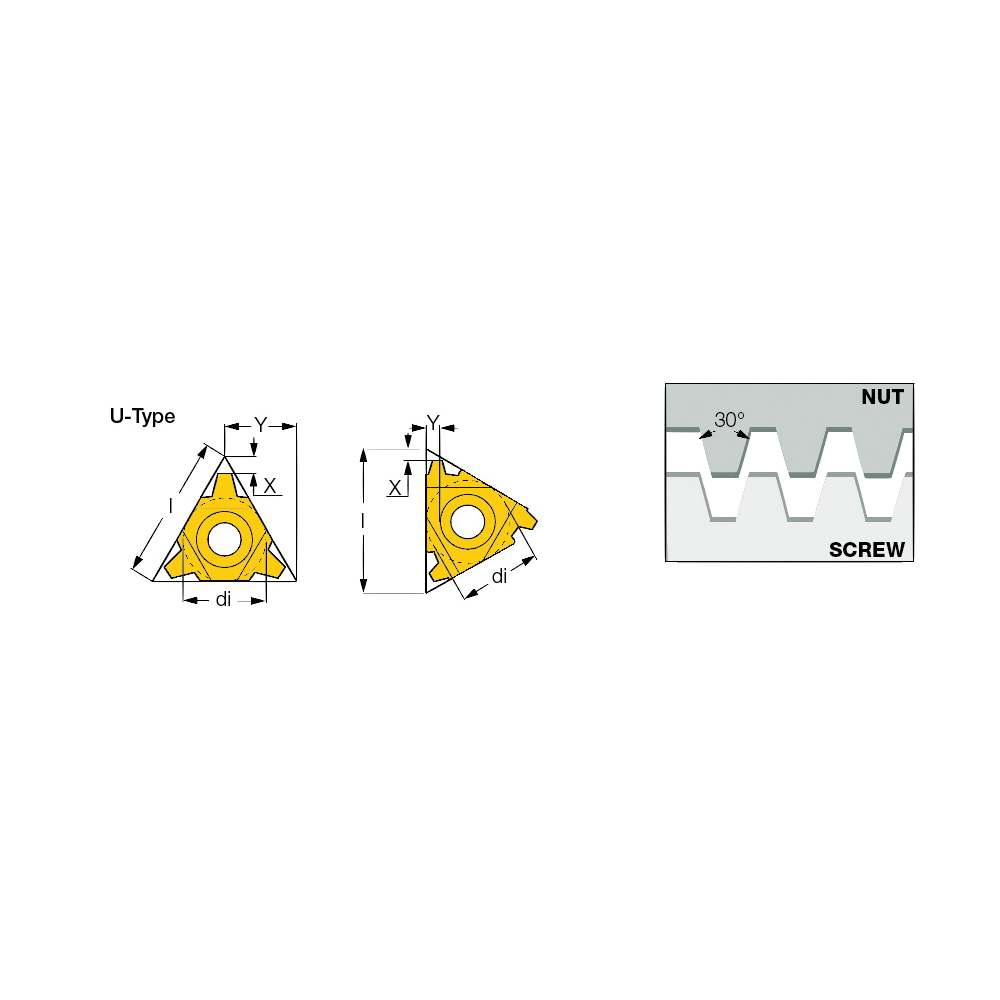

Iscar Threading Insert, Laydown, 27UERL Insert, 27 Insert, Triangular, External, Trapezoidal, 9 mm Pitch, 15.88 mm Inscribed Circle, 6.37 mm Thickness, 27 mm Length, ISO Code: 27UERL 9 TR IC250, Manufacturers Grade: IC250, Left Hand/Right Hand Cutting, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P
Specifications
ApplicationExternal Thread Milling and External Threading
Cutting DirectionLeft Hand/Right Hand
FinishPVD-TiCN+TiN Coated
Inscribed Circle15.88 mm
Insert Size27
Insert Style27UERL
ISO Code27UERL 9 TR IC250
Length27 mm
Manufacturers GradeIC250
MaterialCarbide
Material GradeM, P
Pitch9 mm
ShapeTriangular
Thickness6.37 mm
Thread StandardTrapezoidal
Thread TypeExternal
TypeLaydown
Additional Information
Standards/ApprovalDIN 103 04/1977|1502901/1977 Class 7e
Country of OriginIS
