Iscar ISCAR 5997783

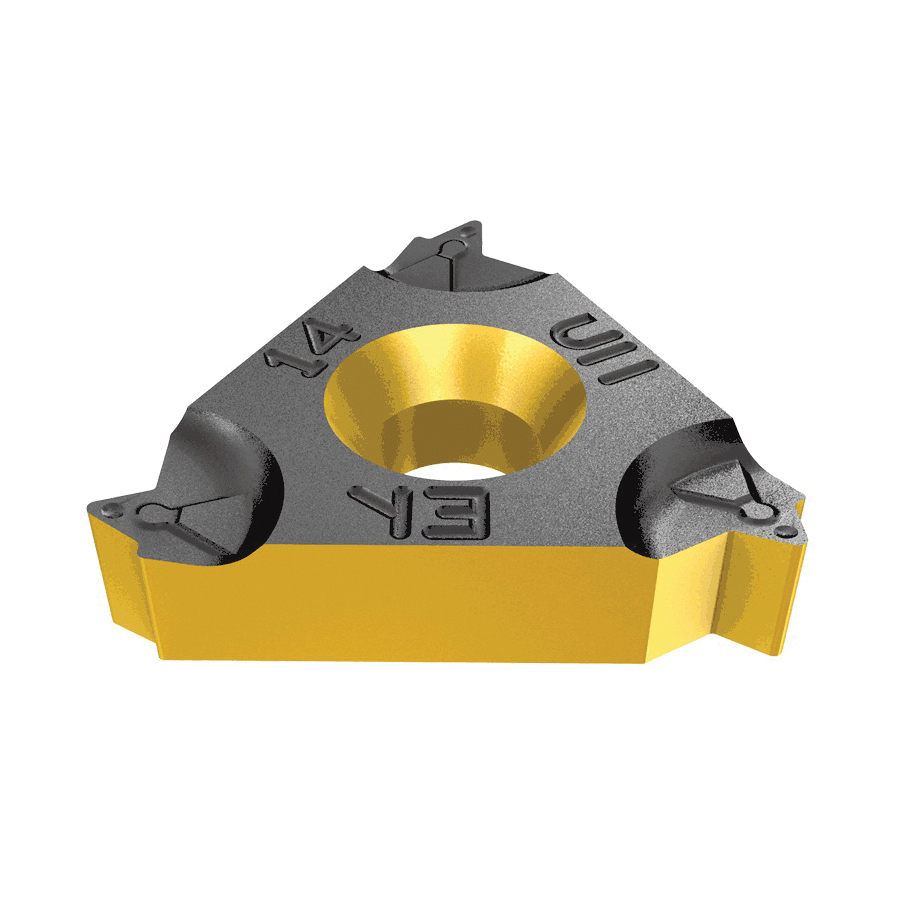

Iscar 5997783 ISCARTHREAD Laydown Threading Insert, 16ER Insert, Triangular Shape, 28 TPI, External Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: IC250, Material Grade: M, P

UNSPSC: 23242107
Manufacturer PN: 5997783
$19.80 EA
Factory Order
Estimated to ship in 14 days
QTY:

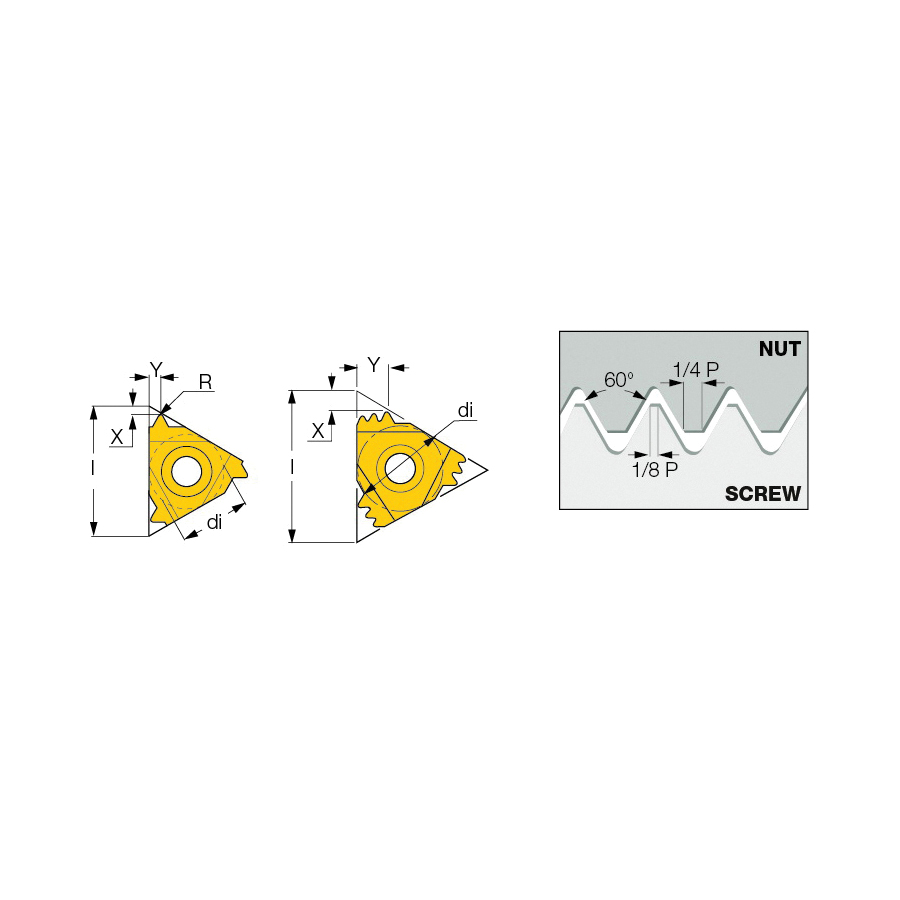

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ER Insert, 16 Insert, Triangular Shape, External Thread, UN Thread Standard, 28 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ER 28 UN IC250, 0.11 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC250, Right Hand Cutting Direction, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P

Specifications

ApplicationExternal Threading and External Thread Milling
Corner Radius0.11 mm
Cutting DirectionRight Hand
FinishPVD-TiCN+TiN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ER
ISO Code16ER 28 UN IC250
Length16.49 mm
Manufacturers GradeIC250
MaterialCarbide
Material GradeM, P
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread StandardUN
Thread TypeExternal
Threads per Inch28
TypeLaydown
