Iscar ISCAR 5997713

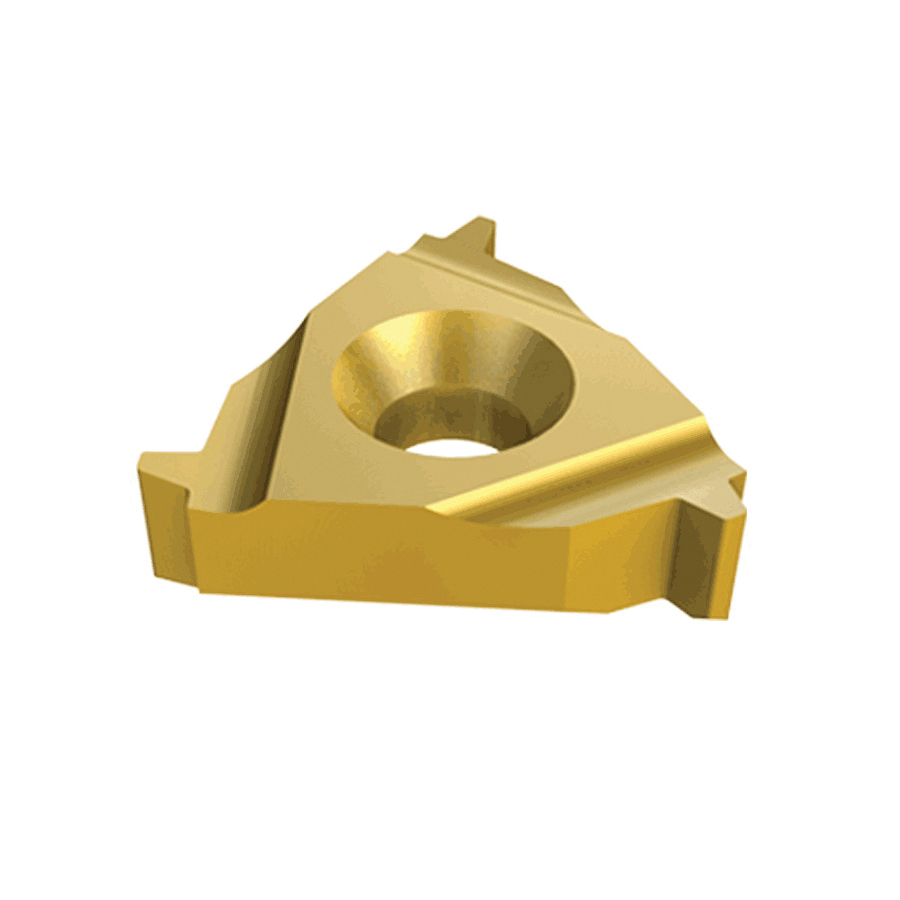

Iscar 5997713 ISCARTHREAD Laydown Threading Insert, 16ER Insert, Triangular Shape, 10 TPI, External Thread, Acme Thread, Right Hand Cutting, Manufacturers Grade: IC250, Material Grade: M, P
Invoice description:
16er 10 Acme Ic250
Factory Order

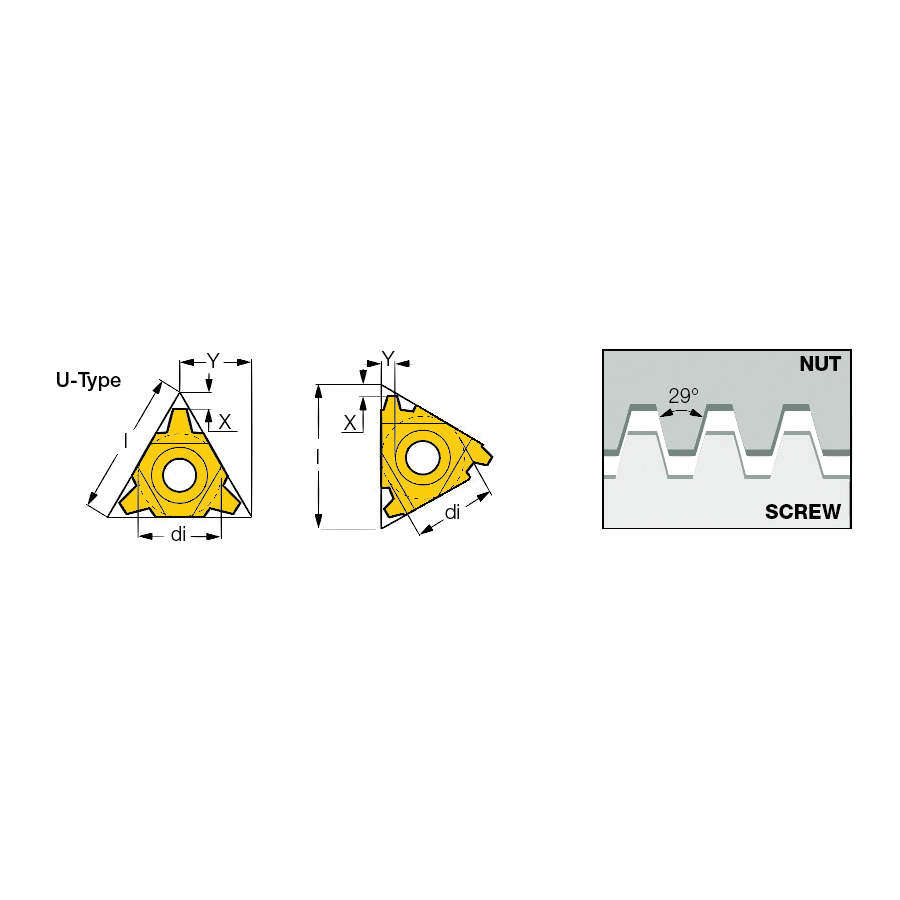

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ER Insert, 16 Insert, Triangular Shape, External Thread, Acme Thread Standard, 10 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ER 10 ACME IC250, 60 deg Included Angle, Manufacturers Grade: IC250, Right Hand Cutting Direction, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P
Specifications
ApplicationExternal Threading and External Thread Milling
Cutting DirectionRight Hand
FinishPVD-TiCN+TiN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ER
ISO Code16ER 10 ACME IC250
Length16.49 mm
Manufacturers GradeIC250
MaterialCarbide
Material GradeM, P
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread StandardAcme
Thread TypeExternal
Threads per Inch10
TypeLaydown
Additional Information
Standards/ApprovalASME/ANSI B1.5-1988 Class 3G
Country of OriginIL
