Iscar ISCAR 5996066

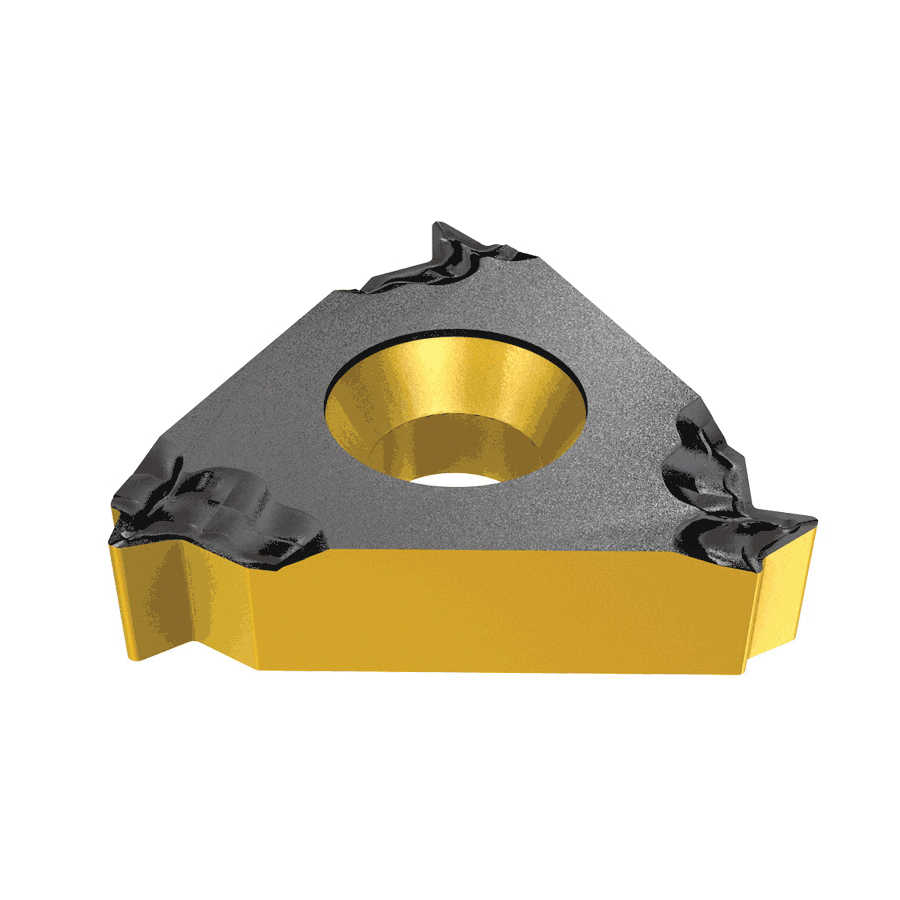

Iscar 5996066 ISCARTHREAD Laydown Threading Insert, 08IR Insert, Triangular Shape, 18 TPI, Internal Thread, NPT Thread, Right Hand Cutting, Manufacturers Grade: IC228, Material Grade: H, K, M, P, S

Invoice description: 08ir 18 Npt Ic228

UNSPSC: 23242107
Manufacturer PN: 5996066
$25.45 EA
Factory Order
Estimated to ship in 14 days
QTY:

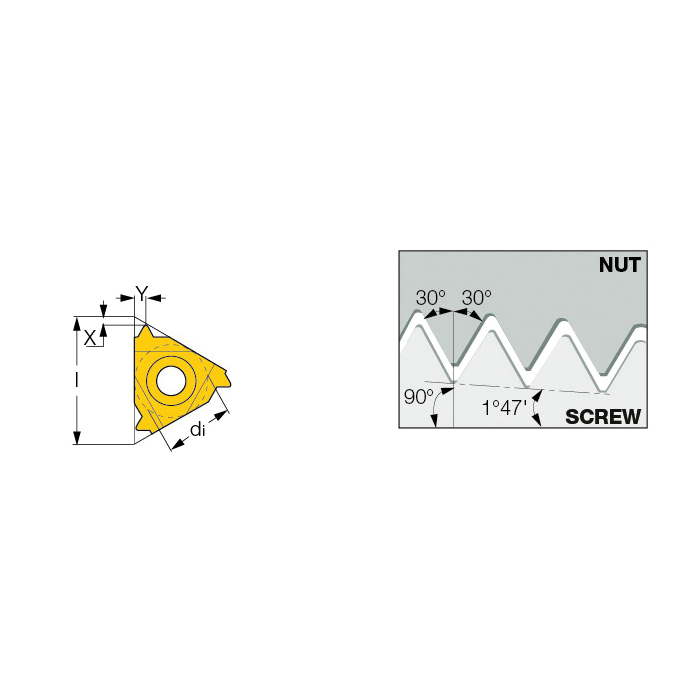

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 08IR Insert, 8 Insert, Triangular Shape, Internal Thread, NPT Thread Standard, 18 Threads per Inch, 4.76 mm Inscribed Circle, 2 mm Thickness, 8 mm Length, ISO Code: 08IR 18 NPT IC228, 0.06 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC228, Right Hand Cutting Direction, Carbide, PVD-TiCN+TiN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Threading and External Thread Milling
Corner Radius0.06 mm
Cutting DirectionRight Hand
FinishPVD-TiCN+TiN Coated
Included Angle60 deg
Inscribed Circle4.76 mm
Insert Size8
Insert Style08IR
ISO Code08IR 18 NPT IC228
Length8 mm
Manufacturers GradeIC228
MaterialCarbide
Material GradeH, K, M, P, S
SeriesISCARTHREAD
ShapeTriangular
Thickness2 mm
Thread StandardNPT
Thread TypeInternal
Threads per Inch18
TypeLaydown

Additional Information

Standards/ApprovalANSI/ASME B1.20.1-1983
Country of OriginIL
