Iscar ISCAR 5992277

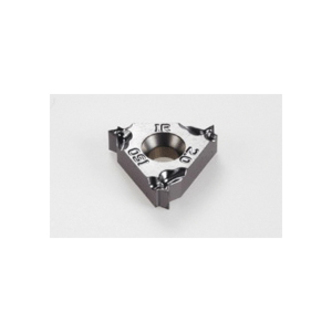

Iscar 5992277 ISCARTHREAD Laydown Threading Insert, 16IRM Insert, Triangular Shape, Internal Thread, ISO/Metric Thread, 2 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
16irm 2.00 Iso Ic908
Factory Order

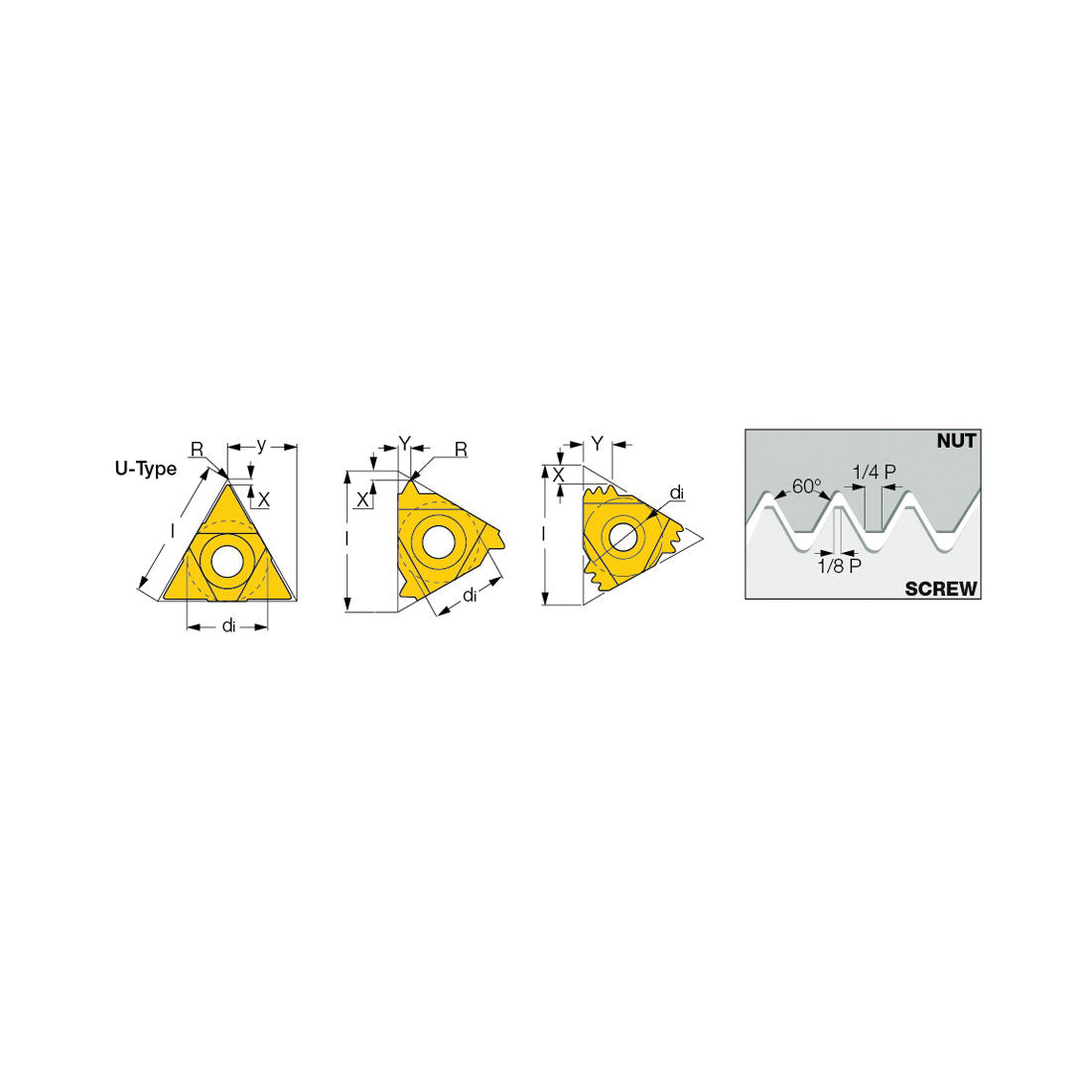

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16IRM Insert, 16 Insert, Triangular, Internal, ISO/Metric, 2 mm Pitch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16IRM 2.00 ISO IC908, M Chipbreaker, 0.004 in Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationInternal Thread Milling, Internal Threading and General Industry
ChipbreakerM
Corner Radius0.004 in
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16IRM
ISO Code16IRM 2.00 ISO IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch2 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread StandardISO/Metric
Thread TypeInternal
TypeLaydown
Additional Information
Standards/ApprovalDIN13 12-1986
