Iscar ISCAR 5921220

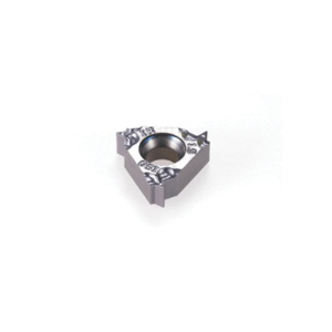

Iscar 5921220 ISCARTHREAD Laydown Threading Insert, 11IRM Insert, Triangular Shape, Internal Thread, ISO/Metric Thread, 1.5 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
11irm 1.50 Iso Ic908
Factory Order
Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 11IRM Insert, 11 Insert, Triangular Shape, Internal Thread, ISO/Metric Thread Standard, 1.5 mm Pitch, 6.35 mm Inscribed Circle, 3.2 mm Thickness, 11 mm Length, ISO Code: 11IRM 1.50 ISO IC908, M Chipbreaker, 0.08 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Threading and External Thread Milling
ChipbreakerM
Corner Radius0.08 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size11
Insert Style11IRM
ISO Code11IRM 1.50 ISO IC908
Length11 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch1.5 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.2 mm
Thread StandardISO/Metric
Thread TypeInternal
TypeLaydown
Additional Information
Standards/ApprovalDIN13 12-1986 class 6H
Country of OriginIL
