Iscar ISCAR 5921211

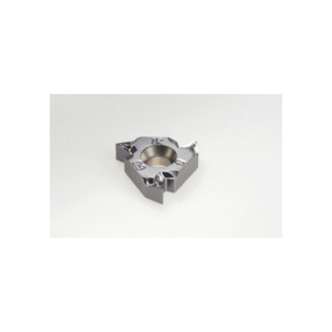

Iscar 5921211 ISCARTHREAD Laydown Threading Insert, 16IRMG Insert, Triangular Shape, 8 to 14 TPI, Internal Thread, 60 deg Partial Profile Thread, 1.75 to 3 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5921211
$17.38 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16IRMG Insert, 16 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 1.75 to 3 mm Pitch, 8 to 14 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16IRM G 60 IC908, M Chipbreaker, 0.1 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Threading and External Thread Milling
ChipbreakerM
Corner Radius0.1 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16IRMG
ISO Code16IRM G 60 IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch1.75 to 3 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch8 to 14
TypeLaydown
