Iscar ISCAR 5921209

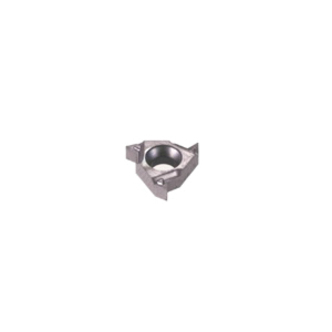

Iscar 5921209 ISCARTHREAD Laydown Threading Insert, 08IRMA Insert, Triangular Shape, 16 to 48 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5921209
$22.00 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 08IRMA Insert, 8 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 0.5 to 1.5 mm Pitch, 16 to 48 Threads per Inch, 4.76 mm Inscribed Circle, 2 mm Thickness, 8 mm Length, ISO Code: 08IRM A 60 IC908, M Chipbreaker, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Threading and External Thread Milling
ChipbreakerM
Corner Radius0.05 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle4.76 mm
Insert Size8
Insert Style08IRMA
ISO Code08IRM A 60 IC908
Length8 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch0.5 to 1.5 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness2 mm
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch16 to 48
TypeLaydown
