Iscar ISCAR 5921206

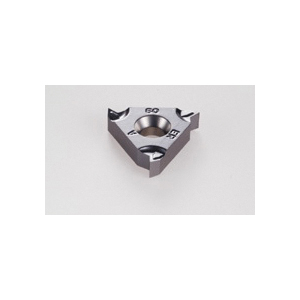

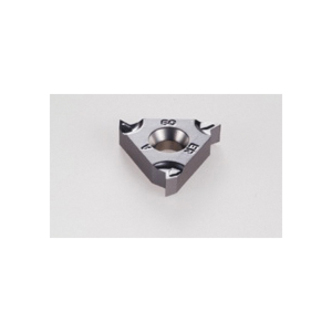

Iscar 5921206 ISCARTHREAD Laydown Threading Insert, 16ERMA Insert, Triangular Shape, 16 to 48 TPI, External Thread, 60 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
16erm A 60 Ic908
Factory Order

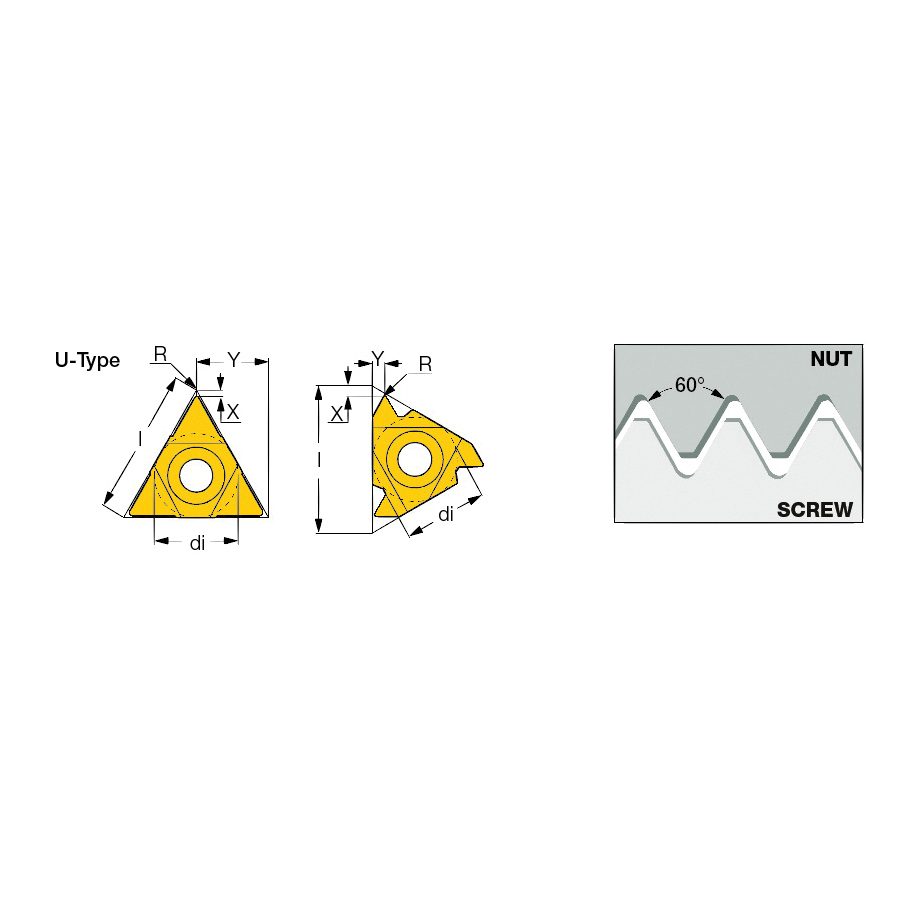

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ERMA Insert, 16 Insert, Triangular Shape, External Thread, 60 deg Partial Profile Thread Standard, 0.5 to 1.5 mm Pitch, 16 to 48 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ERM A 60 IC908, M Chipbreaker, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Thread Milling, External Threading and General Industry
ChipbreakerM
Corner Radius0.05 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ERMA
ISO Code16ERM A 60 IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch0.5 to 1.5 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread Standard60 deg Partial Profile
Thread TypeExternal
Threads per Inch16 to 48
TypeLaydown
Additional Information
Country of OriginIL
