Iscar ISCAR 5920066

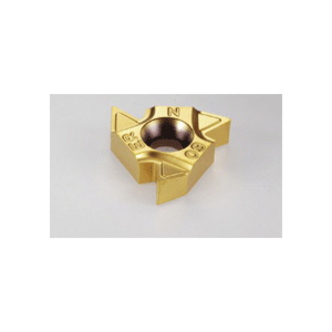

Iscar 5920066 ISCARTHREAD Laydown Threading Insert, 22ERMN Insert, Triangular Shape, 5 to 7 TPI, External Thread, 60 deg Partial Profile Thread, 3.5 to 5 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC250, Material Grade: M, P
Invoice description:
22erm N 60 Ic250
Factory Order
Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 22ERMN Insert, 22 Insert, Triangular Shape, External Thread, 60 deg Partial Profile Thread Standard, 3.5 to 5 mm Pitch, 5 to 7 Threads per Inch, 12.7 mm Inscribed Circle, 4.77 mm Thickness, 22 mm Length, ISO Code: 22ERM N 60 IC250, M Chipbreaker, 0.32 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC250, Right Hand Cutting Direction, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P
Specifications
ApplicationExternal Threading and External Thread Milling
ChipbreakerM
Corner Radius0.32 mm
Cutting DirectionRight Hand
FinishPVD-TiCN+TiN Coated
Included Angle60 deg
Inscribed Circle12.7 mm
Insert Size22
Insert Style22ERMN
ISO Code22ERM N 60 IC250
Length22 mm
Manufacturers GradeIC250
MaterialCarbide
Material GradeM, P
Pitch3.5 to 5 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness4.77 mm
Thread Standard60 deg Partial Profile
Thread TypeExternal
Threads per Inch5 to 7
TypeLaydown
Additional Information
Country of OriginIL
