Iscar ISCAR 5920018

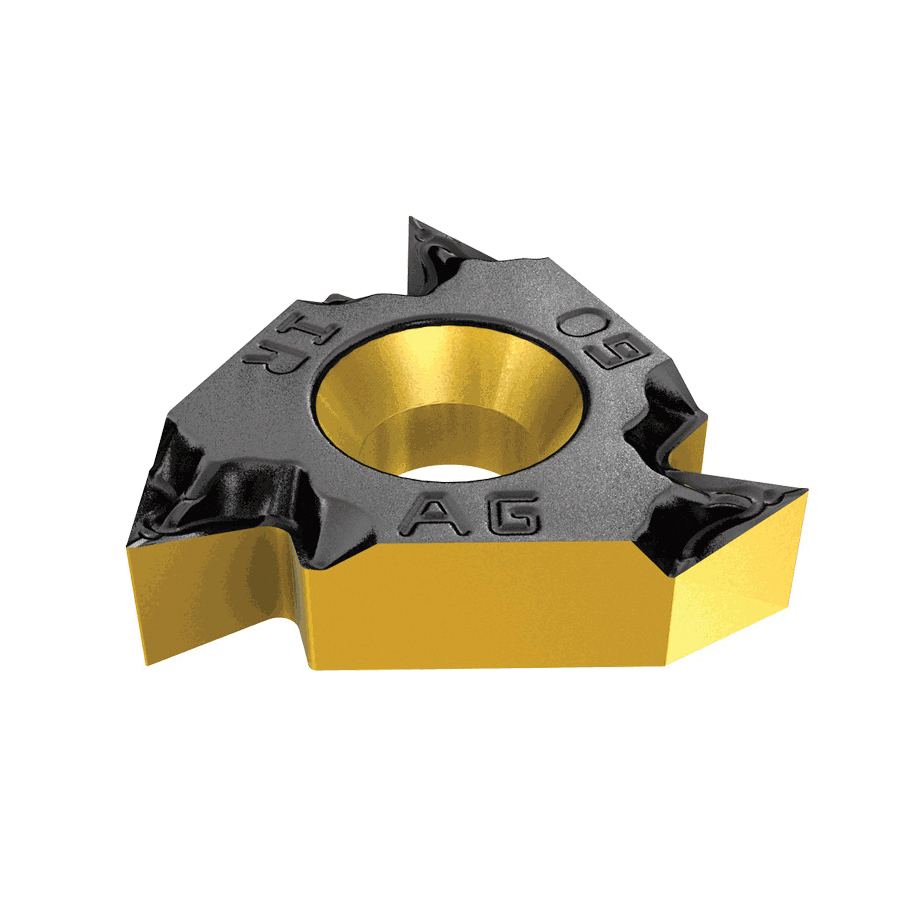

Iscar 5920018 ISCARTHREAD Laydown Threading Insert, 16IRMG Insert, Triangular Shape, 8 to 14 TPI, Internal Thread, 60 deg Partial Profile Thread, 1.75 to 3 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC250, Material Grade: M, P
Invoice description:
16irm G 60 Ic250
Factory Order
Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16IRMG Insert, 16 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 1.75 to 3 mm Pitch, 8 to 14 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16IRM G 60 IC250, M Chipbreaker, 0.1 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC250, Right Hand Cutting Direction, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P
Specifications
ApplicationExternal Threading and External Thread Milling
ChipbreakerM
Corner Radius0.1 mm
Cutting DirectionRight Hand
FinishPVD-TiCN+TiN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16IRMG
ISO Code16IRM G 60 IC250
Length16.49 mm
Manufacturers GradeIC250
MaterialCarbide
Material GradeM, P
Pitch1.75 to 3 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch8 to 14
TypeLaydown
Additional Information
Country of OriginIL
