Iscar ISCAR 5920012

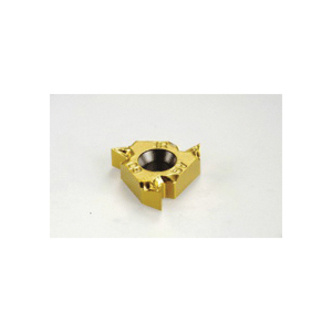

Iscar 5920012 ISCARTHREAD Laydown Threading Insert, 16IRMAG Insert, Triangular Shape, 8 to 48 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 3 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC250, Material Grade: M, P
Invoice description:
16irm Ag 60 Ic250
Factory Order
Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16IRMAG Insert, 16 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 0.5 to 3 mm Pitch, 8 to 48 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16IRM AG 60 IC250, M Chipbreaker, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC250, Right Hand Cutting Direction, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P
Specifications
ApplicationExternal Threading and External Thread Milling
ChipbreakerM
Corner Radius0.05 mm
Cutting DirectionRight Hand
FinishPVD-TiCN+TiN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16IRMAG
ISO Code16IRM AG 60 IC250
Length16.49 mm
Manufacturers GradeIC250
MaterialCarbide
Material GradeM, P
Pitch0.5 to 3 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch8 to 48
TypeLaydown
Additional Information
Country of OriginIL
