Iscar ISCAR 5920009

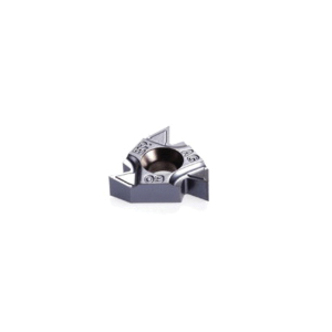

Iscar 5920009 ISCARTHREAD Laydown Threading Insert, 16ERMAG Insert, Triangular Shape, 8 to 48 TPI, External Thread, 60 deg Partial Profile Thread, 0.5 to 3 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC250, Material Grade: M, P

UNSPSC: 23242107
Manufacturer PN: 5920009
$16.60 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ERMAG Insert, 16 Insert, Triangular Shape, External Thread, 60 deg Partial Profile Thread Standard, 0.5 to 3 mm Pitch, 8 to 48 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ERM AG 60 IC250, M Chipbreaker, 0.06 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC250, Right Hand Cutting Direction, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P

Specifications

ApplicationGeneral Industry
ChipbreakerM
Corner Radius0.06 mm
Cutting DirectionRight Hand
FinishPVD-TiCN+TiN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ERMAG
ISO Code16ERM AG 60 IC250
Length16.49 mm
Manufacturers GradeIC250
MaterialCarbide
Material GradeM, P
Pitch0.5 to 3 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread Standard60 deg Partial Profile
Thread TypeExternal
Threads per Inch8 to 48
TypeLaydown
