Iscar ISCAR 5903429

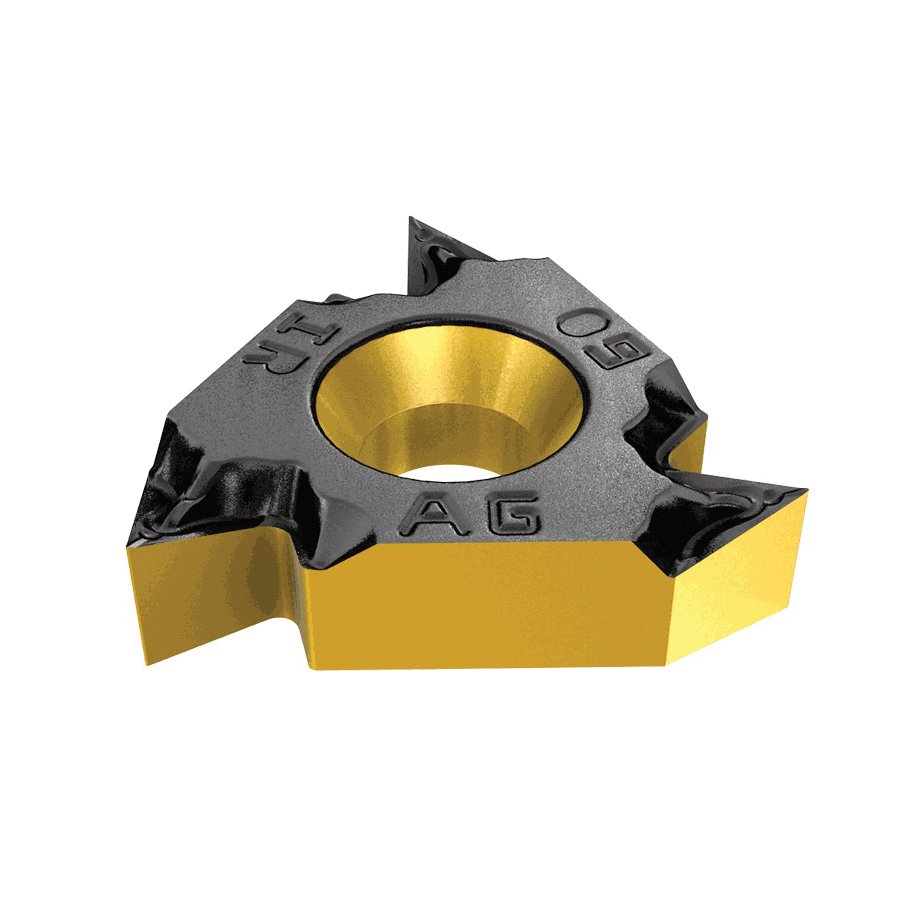

Iscar 5903429 ISCARTHREAD Laydown Threading Insert, 16IRMG Insert, Triangular Shape, 8 to 14 TPI, Internal Thread, 60 deg Partial Profile Thread, 1.75 to 3 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC1007, Material Grade: H, K, M, P, S
Invoice description:
16irm G 60 Ic1007
Factory Order
Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16IRMG Insert, 16 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 1.75 to 3 mm Pitch, 8 to 14 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16IRM G 60 IC1007, M Chipbreaker, 0.1 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC1007, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Threading and External Thread Milling
ChipbreakerM
Corner Radius0.1 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16IRMG
ISO Code16IRM G 60 IC1007
Length16.49 mm
Manufacturers GradeIC1007
MaterialCarbide
Material GradeH, K, M, P, S
Pitch1.75 to 3 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch8 to 14
TypeLaydown
Additional Information
Country of OriginIL
