Iscar ISCAR 5903416

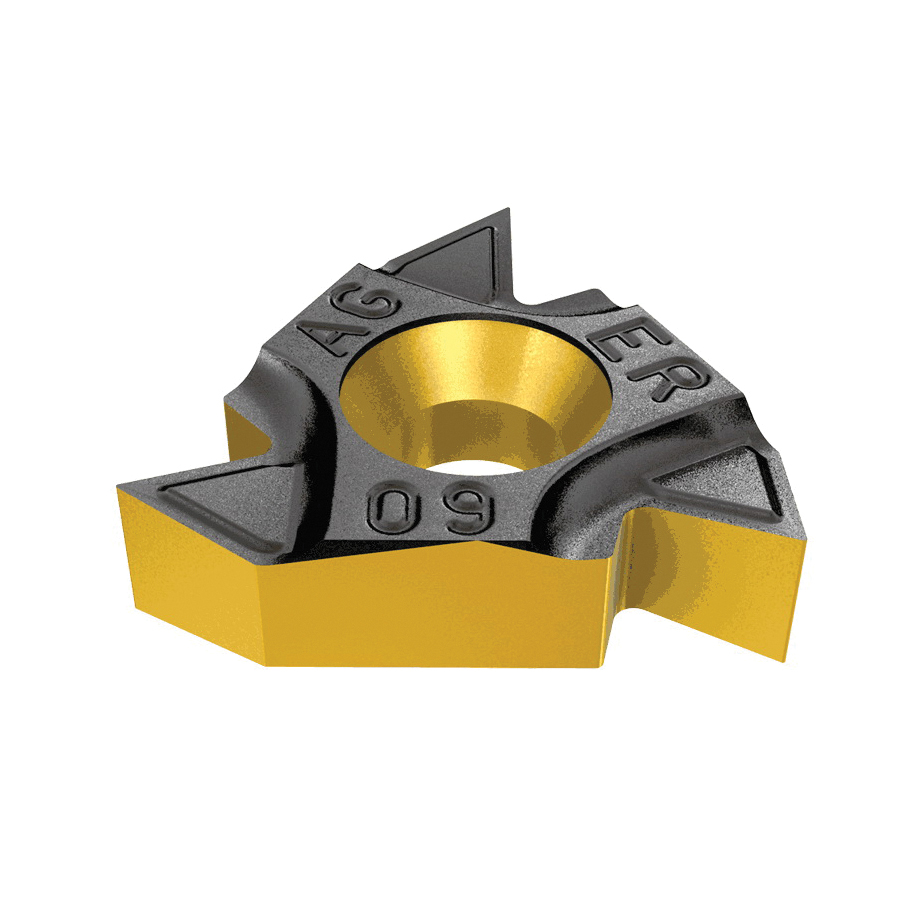

Iscar 5903416 ISCARTHREAD Laydown Threading Insert, 16ERMAG Insert, Triangular Shape, 8 to 48 TPI, External Thread, 60 deg Partial Profile Thread, 0.5 to 3 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC1007, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5903416
$17.38 EA
Factory Order
Estimated to ship in 14 days
QTY:

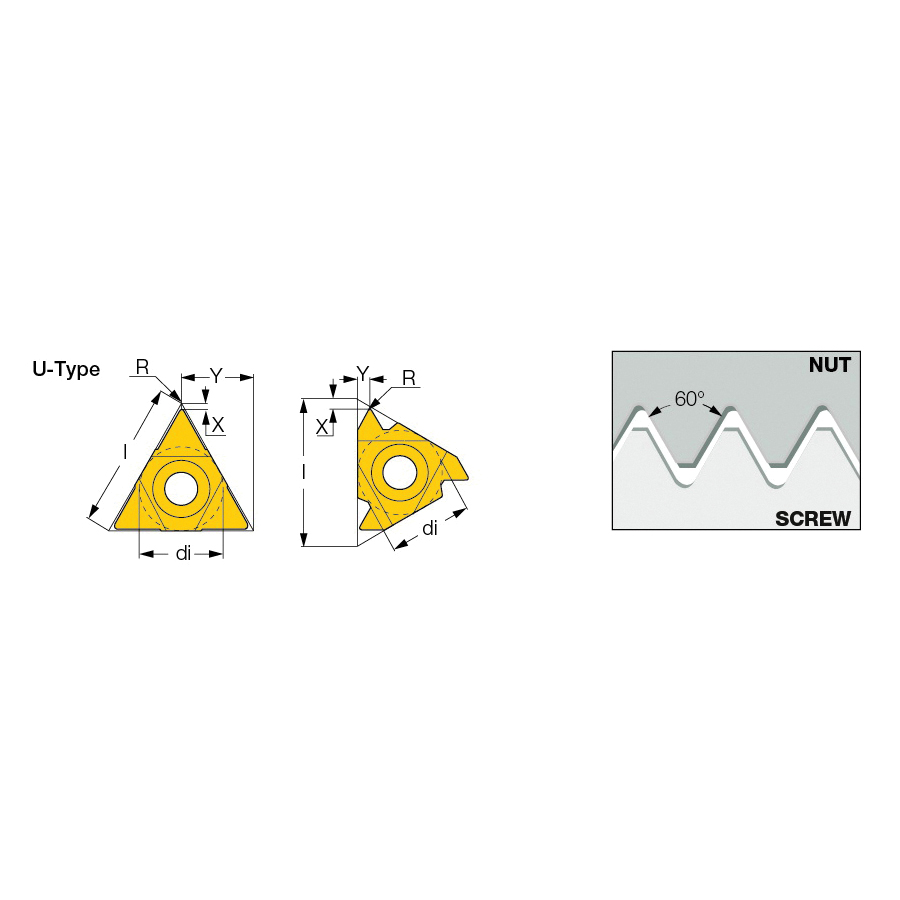

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ERMAG Insert, 16 Insert, Triangular Shape, External Thread, 60 deg Partial Profile Thread Standard, 0.5 to 3 mm Pitch, 8 to 48 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ERM AG 60 IC1007, M Chipbreaker, 0.06 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC1007, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationGeneral Industry
ChipbreakerM
Corner Radius0.06 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ERMAG
ISO Code16ERM AG 60 IC1007
Length16.49 mm
Manufacturers GradeIC1007
MaterialCarbide
Material GradeH, K, M, P, S
Pitch0.5 to 3 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread Standard60 deg Partial Profile
Thread TypeExternal
Threads per Inch8 to 48
TypeLaydown
