Iscar ISCAR 5903399

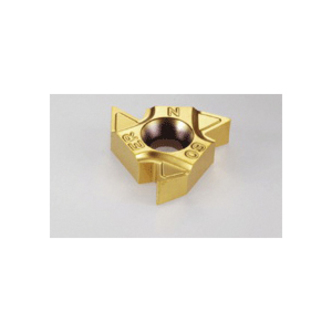

Iscar 5903399 ISCARTHREAD Laydown Threading Insert, 22ERMN Insert, Triangular Shape, 5 to 7 TPI, External Thread, 60 deg Partial Profile Thread, 3.5 to 5 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC808, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5903399
$24.18 EA
Factory Order
Estimated to ship in 14 days
QTY:

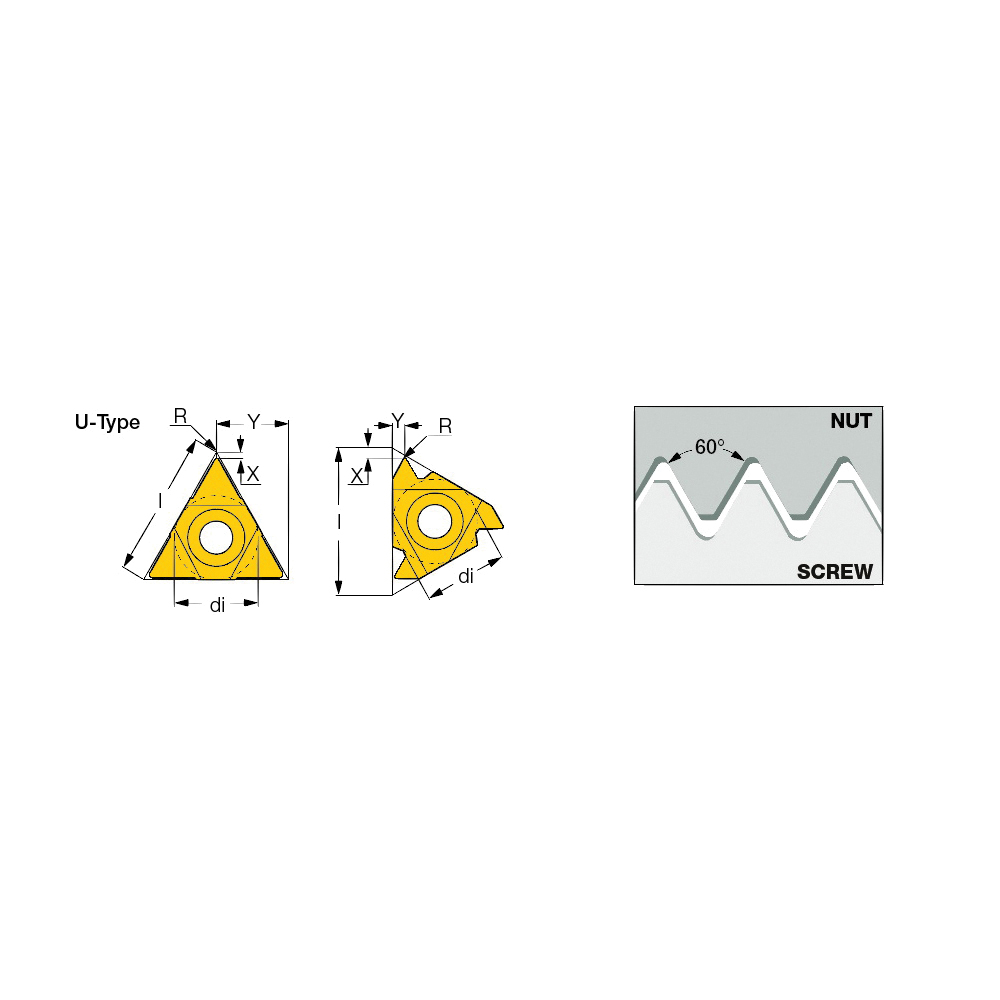

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 22ERMN Insert, 22 Insert, Triangular Shape, External Thread, 60 deg Partial Profile Thread Standard, 3.5 to 5 mm Pitch, 5 to 7 Threads per Inch, 12.7 mm Inscribed Circle, 4.77 mm Thickness, 22 mm Length, ISO Code: 22ERM N 60 IC808, M Chipbreaker, 0.32 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC808, Right Hand Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Thread Milling, External Threading and General Industry
ChipbreakerM
Corner Radius0.32 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN/AlTiN+TiN Coated
Included Angle60 deg
Inscribed Circle12.7 mm
Insert Size22
Insert Style22ERMN
ISO Code22ERM N 60 IC808
Length22 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Pitch3.5 to 5 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness4.77 mm
Thread Standard60 deg Partial Profile
Thread TypeExternal
Threads per Inch5 to 7
TypeLaydown
