Iscar ISCAR 5903267

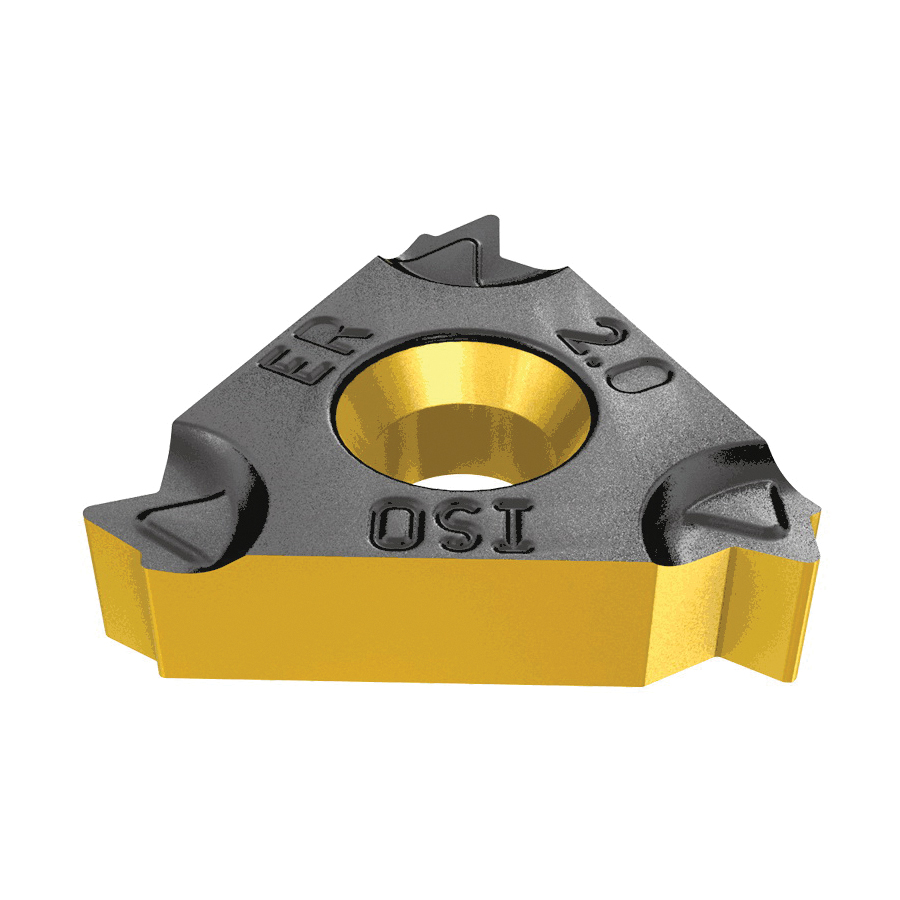

Iscar 5903267 ISCARTHREAD Laydown Threading Insert, 16ERM Insert, Triangular Shape, External Thread, ISO/Metric Thread, 1.5 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC808, Material Grade: H, K, M, P, S
Invoice description:
16erm 1.50 Iso Ic808
Factory Order

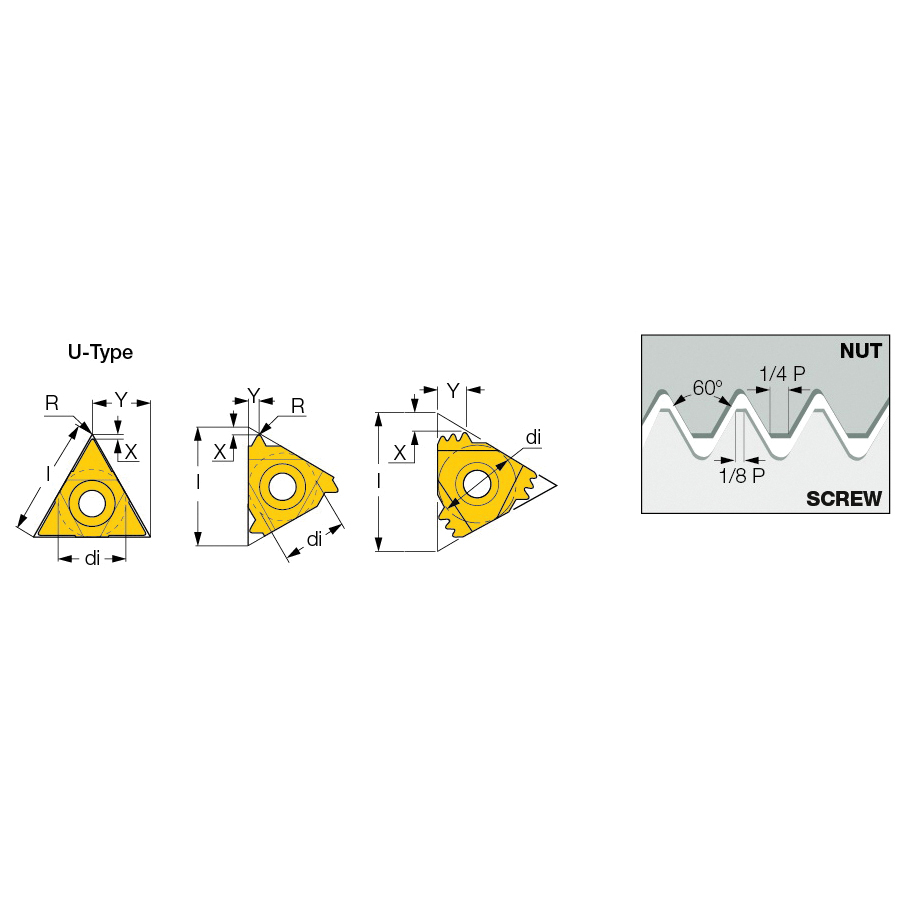

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ERM Insert, 16 Insert, Triangular, External, ISO/Metric, 1.5 mm Pitch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ERM 1.50 ISO IC808, M Chipbreaker, 0.19 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC808, Right Hand Cutting, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Thread Milling, External Threading and General Industry
ChipbreakerM
Corner Radius0.19 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN/AlTiN+TiN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ERM
ISO Code16ERM 1.50 ISO IC808
Length16.49 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Pitch1.5 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread StandardISO/Metric
Thread TypeExternal
TypeLaydown
Additional Information
Standards/ApprovalDIN13 12-1986
Country of OriginIS
