Iscar ISCAR 5902499

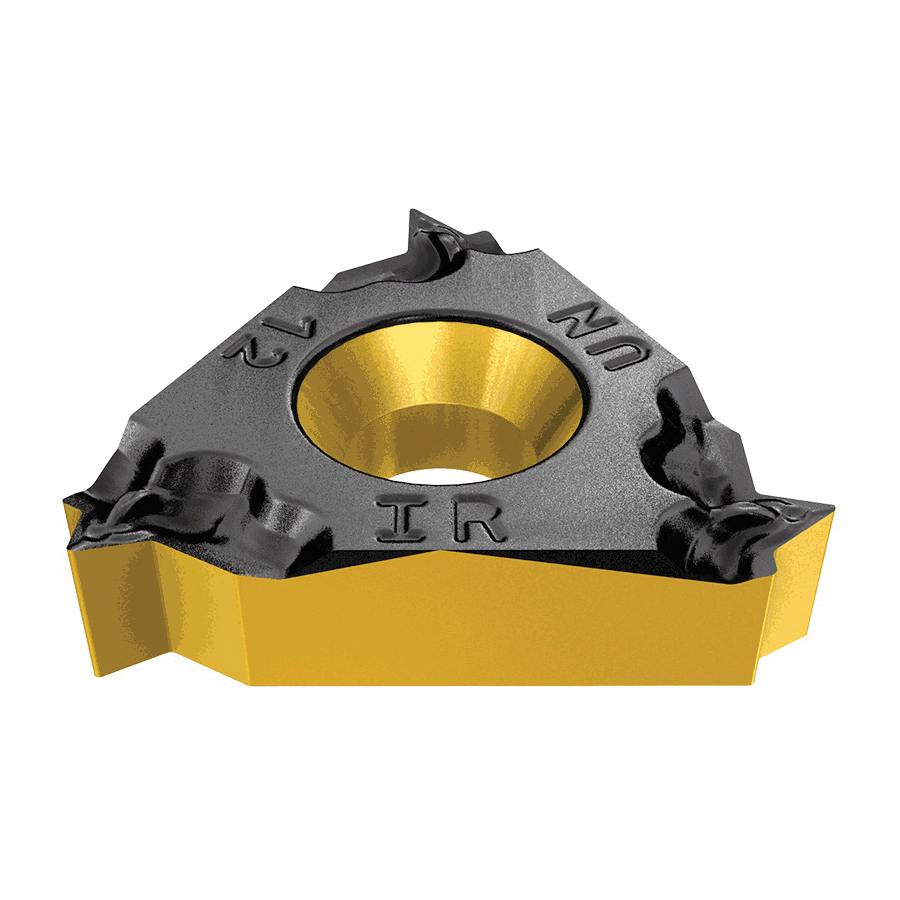

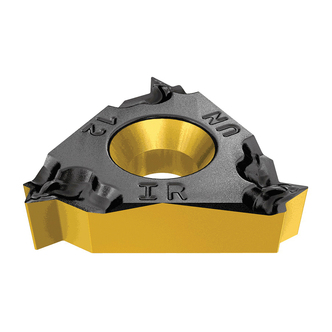

Iscar 5902499 ISCARTHREAD Laydown Threading Insert, 16IR Insert, Triangular Shape, 24 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturer's Grade: IC908, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5902499
$20.82 EA
Factory Order
Estimated to ship in 14 days
QTY:

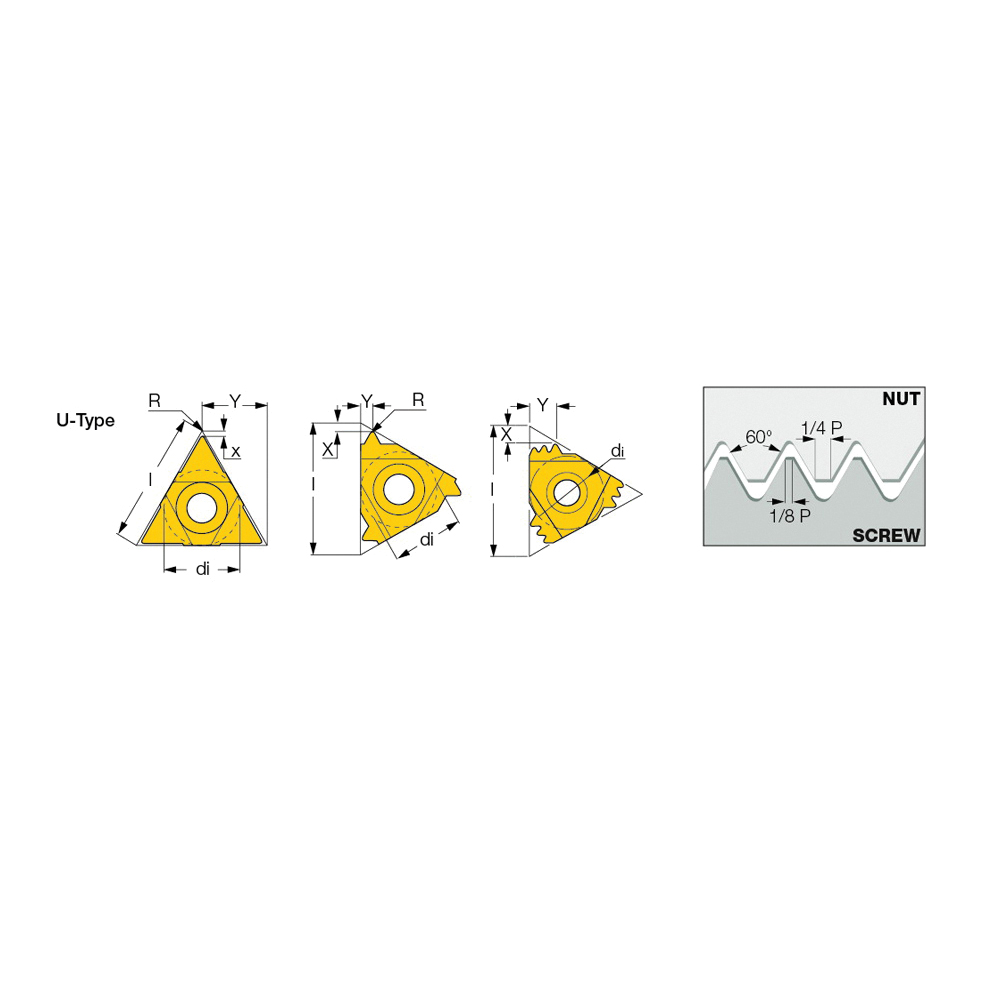

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16IR Insert, 16 Insert, Triangular Shape, Internal Thread, UN Thread Standard, 24 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16IR 24 UN IC908, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturer's Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Threading and External Thread Milling
TypeLaydown
SeriesISCARTHREAD
Insert Style16IR
Insert Size16
ShapeTriangular
Thread TypeInternal
Thread StandardUN
Threads per Inch24
Inscribed Circle9.52 mm
