Iscar ISCAR 5902389

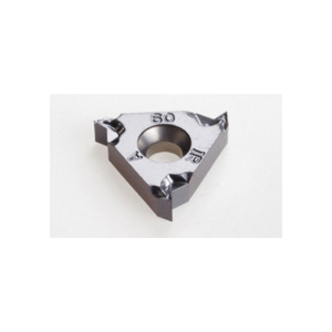

Iscar 5902389 ISCARTHREAD Laydown Threading Insert, 16IRMA Insert, Triangular Shape, 16 to 48 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5902389
$17.38 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16IRMA Insert, 16 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 0.5 to 1.5 mm Pitch, 16 to 48 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16IRM A 60 IC908, M Chipbreaker, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Threading and External Thread Milling
ChipbreakerM
Corner Radius0.05 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16IRMA
ISO Code16IRM A 60 IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch0.5 to 1.5 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch16 to 48
TypeLaydown
