Iscar ISCAR 5902387

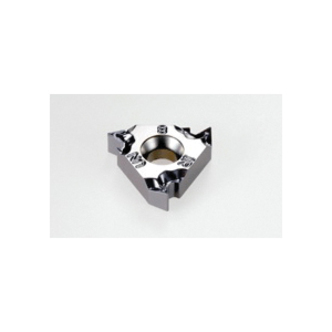

Iscar 5902387 ISCARTHREAD Laydown Threading Insert, 16IR Insert, 8 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: C1, C2, C6, C7

UNSPSC: 23291804
Manufacturer PN: 5902387
$17.38 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Laydown Threading Insert, Series: ISCARTHREAD, 16IR Insert, Internal Thread, UN Thread Standard, 8 Threads per Inch, 3/8 in Inscribed Circle, 0.143 in Thickness, ISO Code: 16IRM 8 UN, 0.2 mm Corner Radius, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: C1, C2, C6, C7

Specifications

Corner Radius0.2 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Inscribed Circle3/8 in
Insert Style16IR
ISO Code16IRM 8 UN
Manufacturers GradeIC908
MaterialCarbide
Material GradeC1, C2, C6, C7
SeriesISCARTHREAD
Thickness0.143 in
Thread StandardUN
Thread TypeInternal
Threads per Inch8
