Iscar ISCAR 5902384

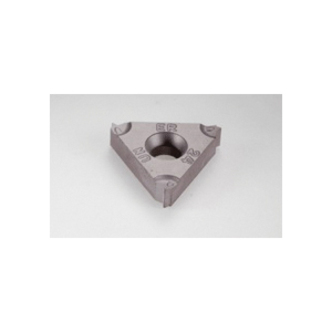

Iscar 5902384 ISCARTHREAD Laydown Threading Insert, 16ERM Insert, Triangular Shape, 24 TPI, External Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

Invoice description: 16erm 24 Un Ic908

UNSPSC: 23242107
Manufacturer PN: 5902384
$17.89 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ERM Insert, 16 Insert, Triangular Shape, External Thread, UN Thread Standard, 24 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ERM 24 UN IC908, M Chipbreaker, 0.11 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationGeneral Industry
ChipbreakerM
Corner Radius0.11 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ERM
ISO Code16ERM 24 UN IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread StandardUN
Thread TypeExternal
Threads per Inch24
TypeLaydown

Additional Information

Standards/ApprovalANSI/ASME B1.20.1-1983
Country of OriginIL
