Iscar ISCAR 5902243

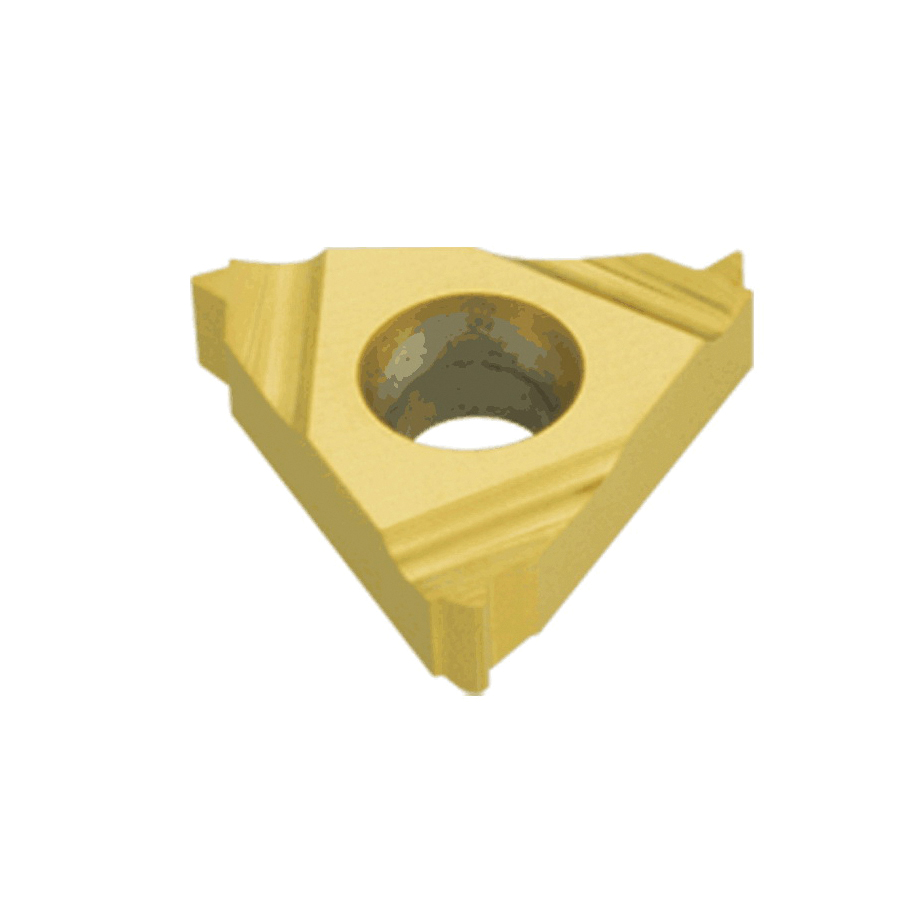

Iscar 5902243 ISCARTHREAD Laydown Threading Insert, 16ER Insert, Triangular Shape, 28 TPI, External Thread, UNJ Thread, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5902243
$23.88 EA
Factory Order
Estimated to ship in 14 days
QTY:

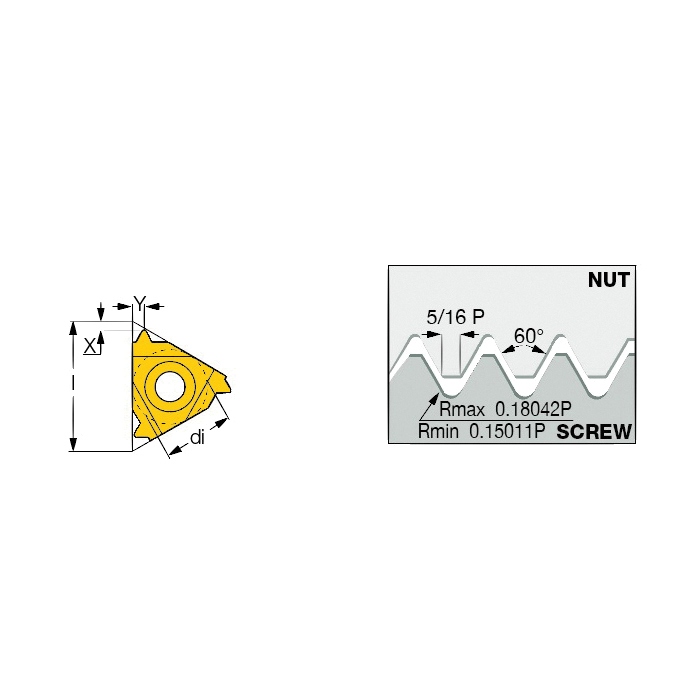

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ER Insert, 16 Insert, Triangular Shape, External Thread, UNJ Thread Standard, 28 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ER 28 UNJ IC908, 0.14 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Threading and External Thread Milling
Corner Radius0.14 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ER
ISO Code16ER 28 UNJ IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread StandardUNJ
Thread TypeExternal
Threads per Inch28
TypeLaydown
