Iscar ISCAR 5902178

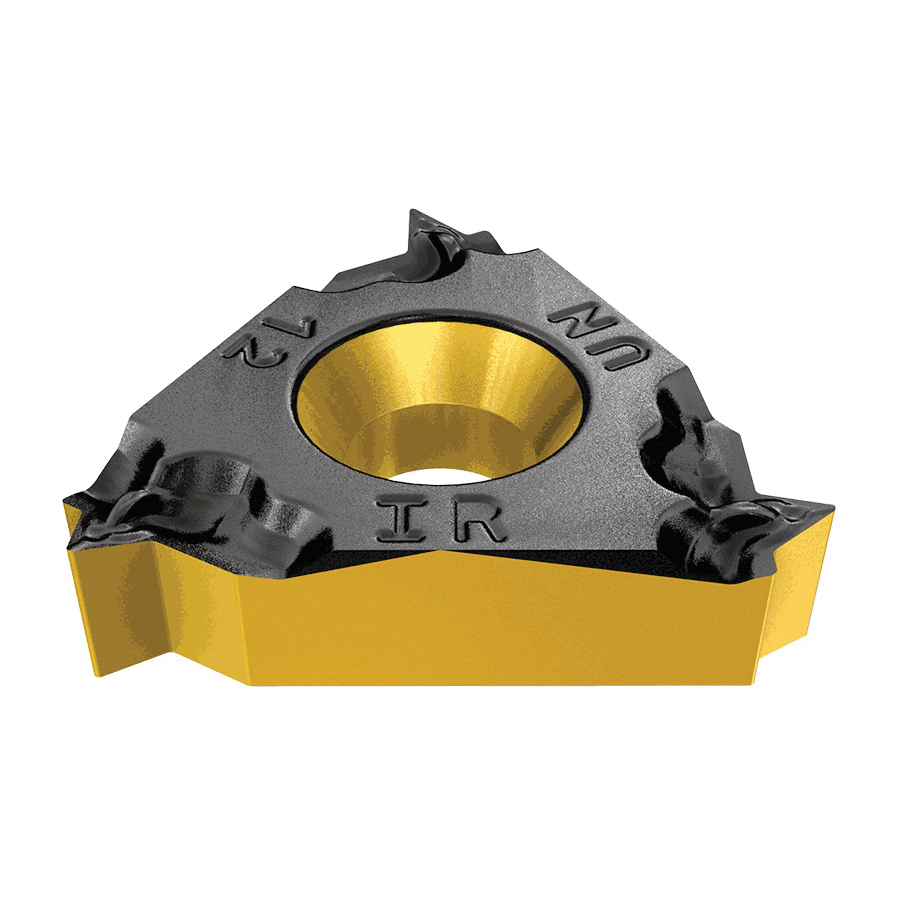

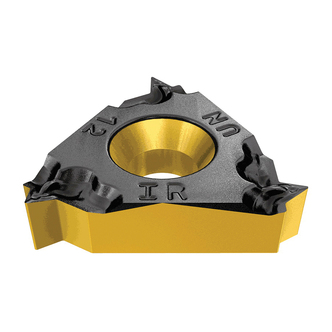

Iscar 5902178 ISCARTHREAD Laydown Threading Insert, 11IR Insert, Triangular Shape, 18 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
11ir 18 Un Ic908
Factory Order

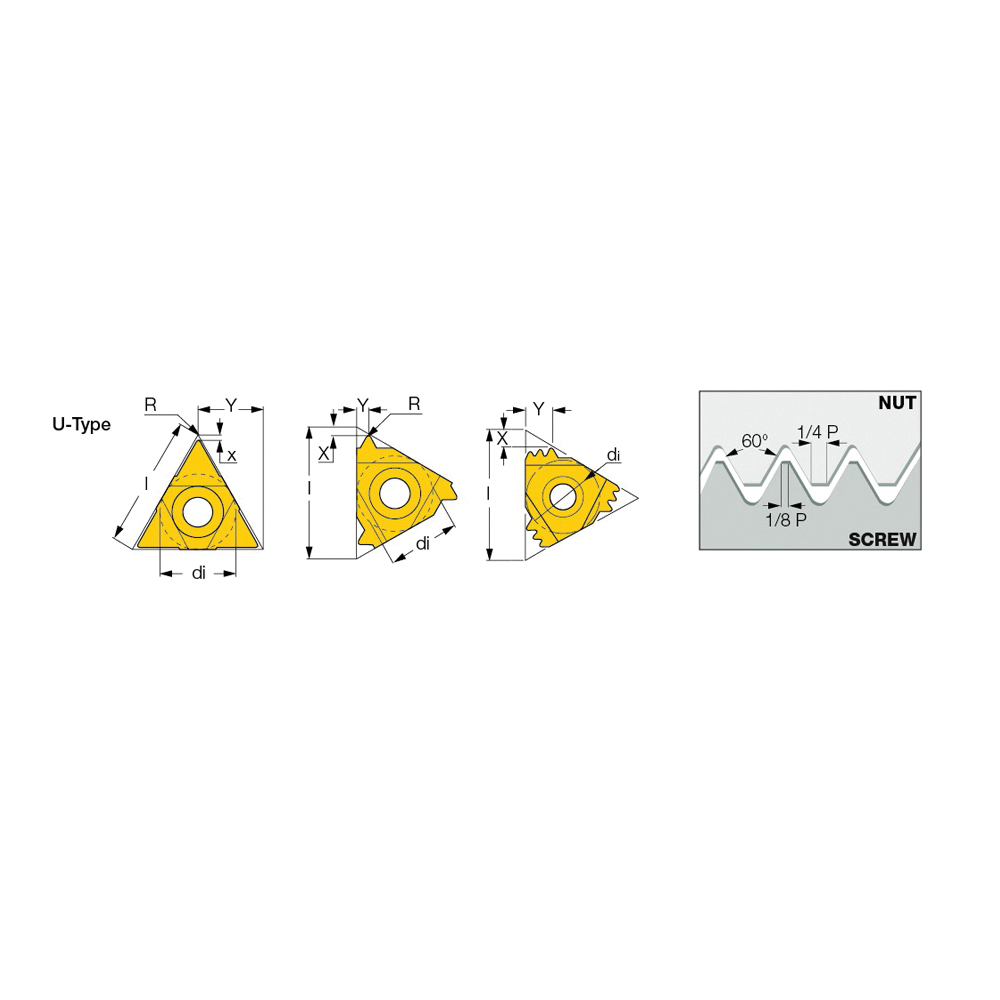

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 11IR Insert, 11 Insert, Triangular Shape, Internal Thread, UN Thread Standard, 18 Threads per Inch, 6.35 mm Inscribed Circle, 3.2 mm Thickness, 11 mm Length, ISO Code: 11IR 18 UN IC908, 0.1 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Threading and External Thread Milling
Corner Radius0.1 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size11
Insert Style11IR
ISO Code11IR 18 UN IC908
Length11 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesISCARTHREAD
ShapeTriangular
Thickness3.2 mm
Thread StandardUN
Thread TypeInternal
Threads per Inch18
TypeLaydown
Additional Information
Country of OriginIL
