Iscar ISCAR 5902163

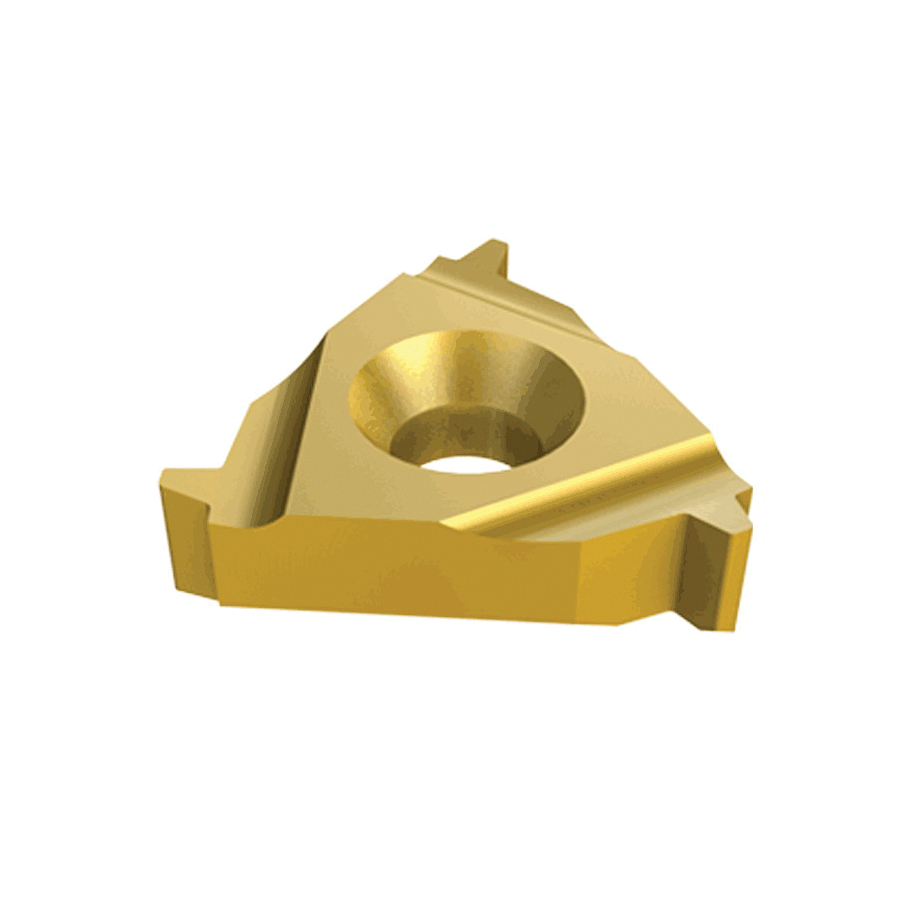

Iscar 5902163 ISCARTHREAD Laydown Threading Insert, 22ER Insert, Triangular Shape, 5 TPI, External Thread, Stub Acme Thread, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

Invoice description: 22er 5 Stacme Ic908

UNSPSC: 23242107
Manufacturer PN: 5902163
$30.93 EA
Factory Order
Estimated to ship in 15 days
QTY:

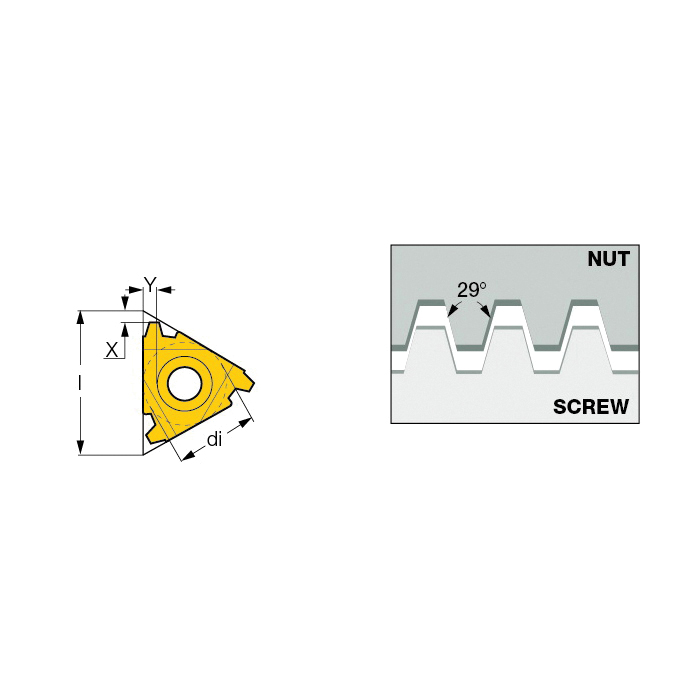

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 22ER Insert, 22 Insert, Triangular Shape, External Thread, Stub Acme Thread Standard, 5 Threads per Inch, 12.7 mm Inscribed Circle, 4.77 mm Thickness, 22 mm Length, ISO Code: 22ER 5 STACME IC908, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle12.7 mm
Insert Size22
Insert Style22ER
ISO Code22ER 5 STACME IC908
Length22 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesISCARTHREAD
ShapeTriangular
Thickness4.77 mm
Thread StandardStub Acme
Thread TypeExternal
Threads per Inch5
TypeLaydown

Additional Information

Standards/ApprovalASME/ANSI B1.8-1988 Class 2G
Country of OriginIL
