Iscar ISCAR 5902154

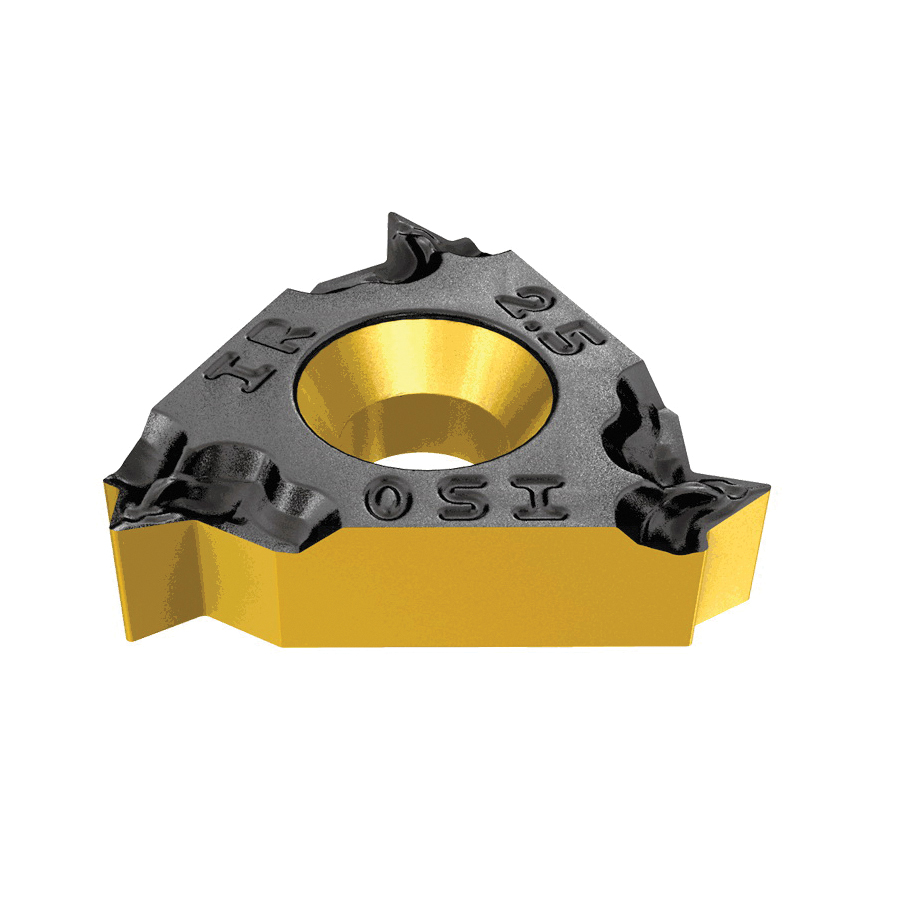

Iscar 5902154 ISCARTHREAD Laydown Threading Insert, 11IR Insert, Triangular Shape, Internal Thread, ISO/Metric Thread, 2 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
11ir 2.00 Iso Ic908
Factory Order

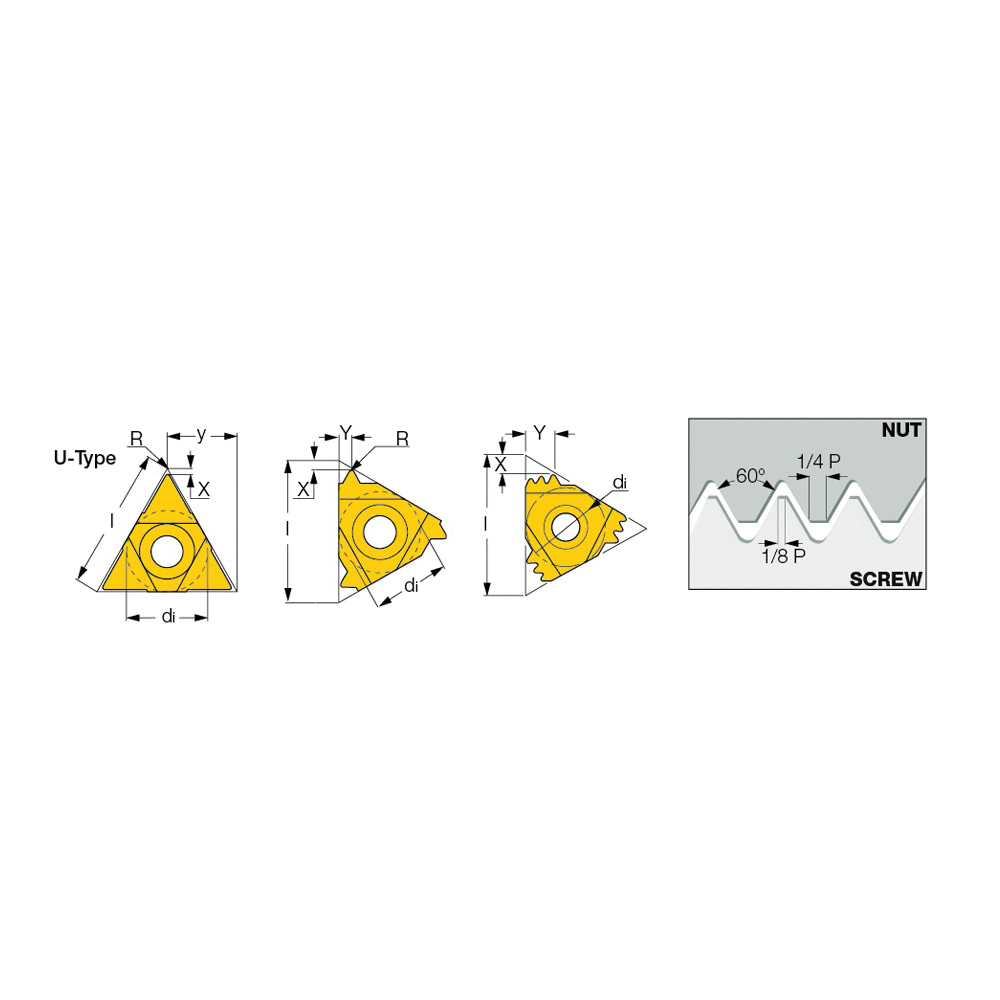

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 11IR Insert, 11 Insert, Triangular, Internal, ISO/Metric, 2 mm Pitch, 6.35 mm Inscribed Circle, 3.2 mm Thickness, 11 mm Length, ISO Code: 11IR 2.00 ISO IC908, 0.14 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Threading and External Thread Milling
Corner Radius0.14 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size11
Insert Style11IR
ISO Code11IR 2.00 ISO IC908
Length11 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch2 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.2 mm
Thread StandardISO/Metric
Thread TypeInternal
TypeLaydown
Additional Information
Standards/ApprovalDIN13 12-1986 class 6H
Country of OriginIL
