Iscar ISCAR 5902143
Iscar 5902143 ISCARTHREAD Laydown Threading Insert, 16ER Insert, Triangular Shape, 9 TPI, External Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
16er 9 Un Ic908
Factory Order

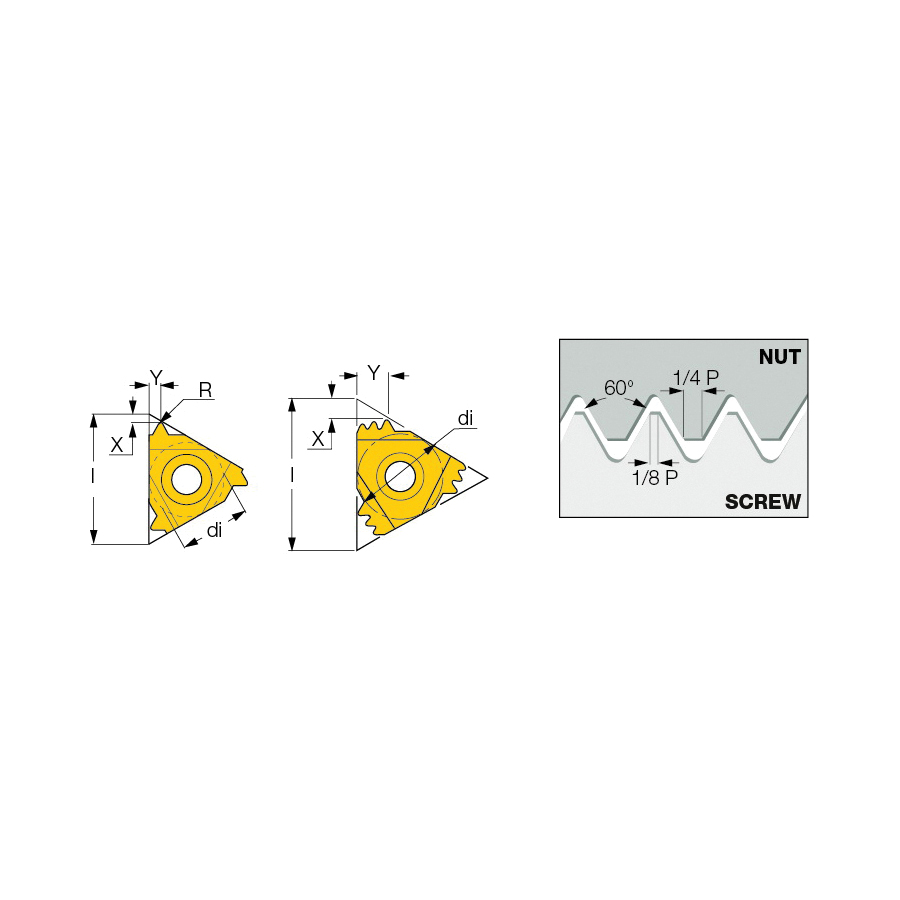

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ER Insert, 16 Insert, Triangular Shape, External Thread, UN Thread Standard, 9 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ER 9 UN IC908, B Chipbreaker, 0.35 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Threading and External Thread Milling
ChipbreakerB
Corner Radius0.35 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ER
ISO Code16ER 9 UN IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread StandardUN
Thread TypeExternal
Threads per Inch9
TypeLaydown
Additional Information
Country of OriginIL
