Iscar ISCAR 5902119

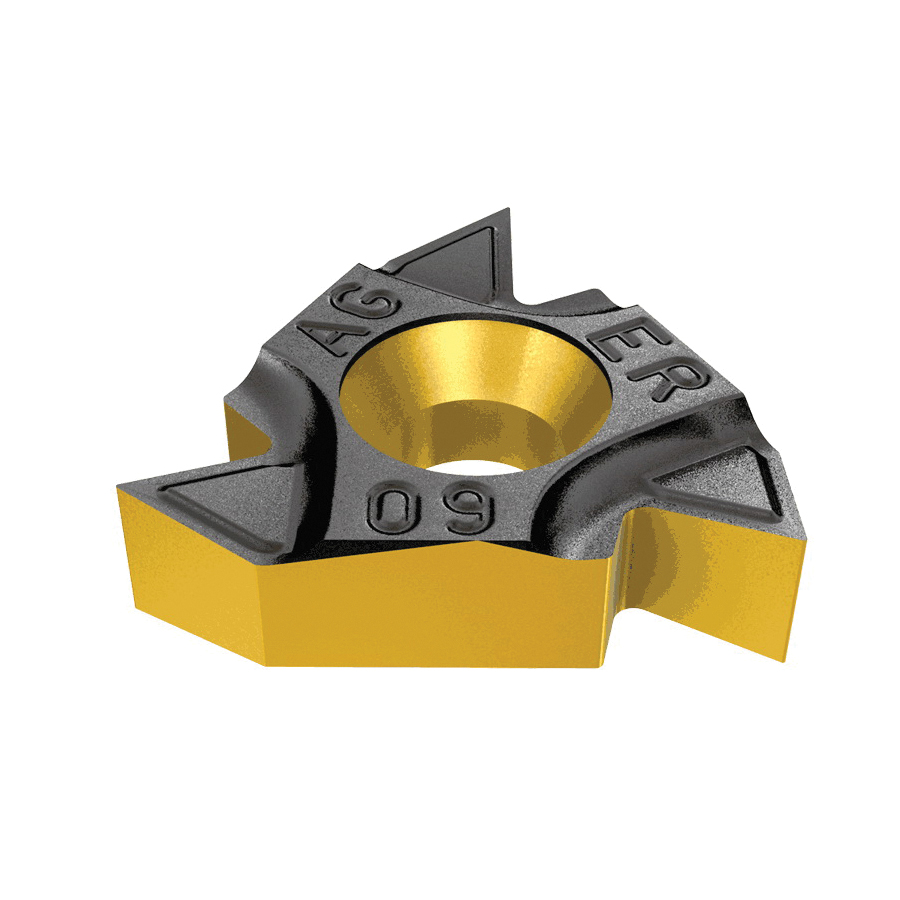

Iscar 5902119 ISCARTHREAD Laydown Threading Insert, 16ELAG Insert, Triangular Shape, 8 to 48 TPI, External Thread, 60 deg Partial Profile Thread, 0.5 to 3 mm Pitch, Left Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
16el Ag 60 Ic908
In stock
(5)

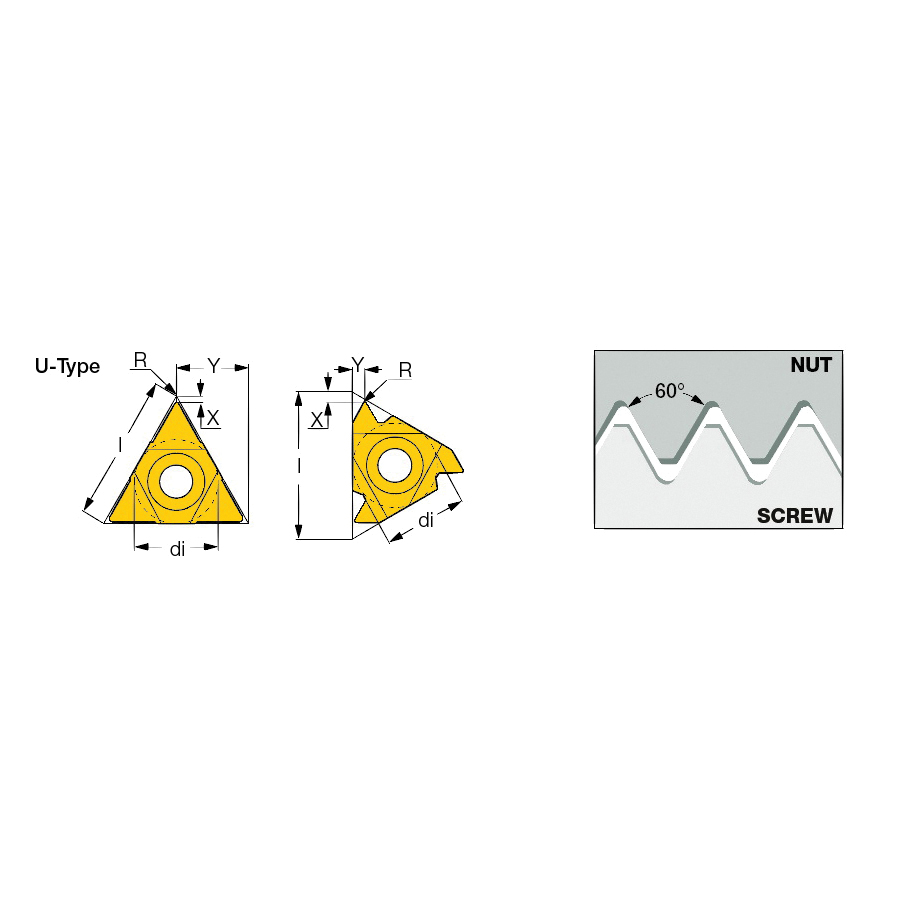

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ELAG Insert, 16 Insert, Triangular Shape, External Thread, 60 deg Partial Profile Thread Standard, 0.5 to 3 mm Pitch, 8 to 48 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16EL AG 60 IC908, 0.06 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Left Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Threading and External Thread Milling
Corner Radius0.06 mm
Cutting DirectionLeft Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ELAG
ISO Code16EL AG 60 IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch0.5 to 3 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread Standard60 deg Partial Profile
Thread TypeExternal
Threads per Inch8 to 48
TypeLaydown
Additional Information
Country of OriginIL
