Iscar ISCAR 5902104

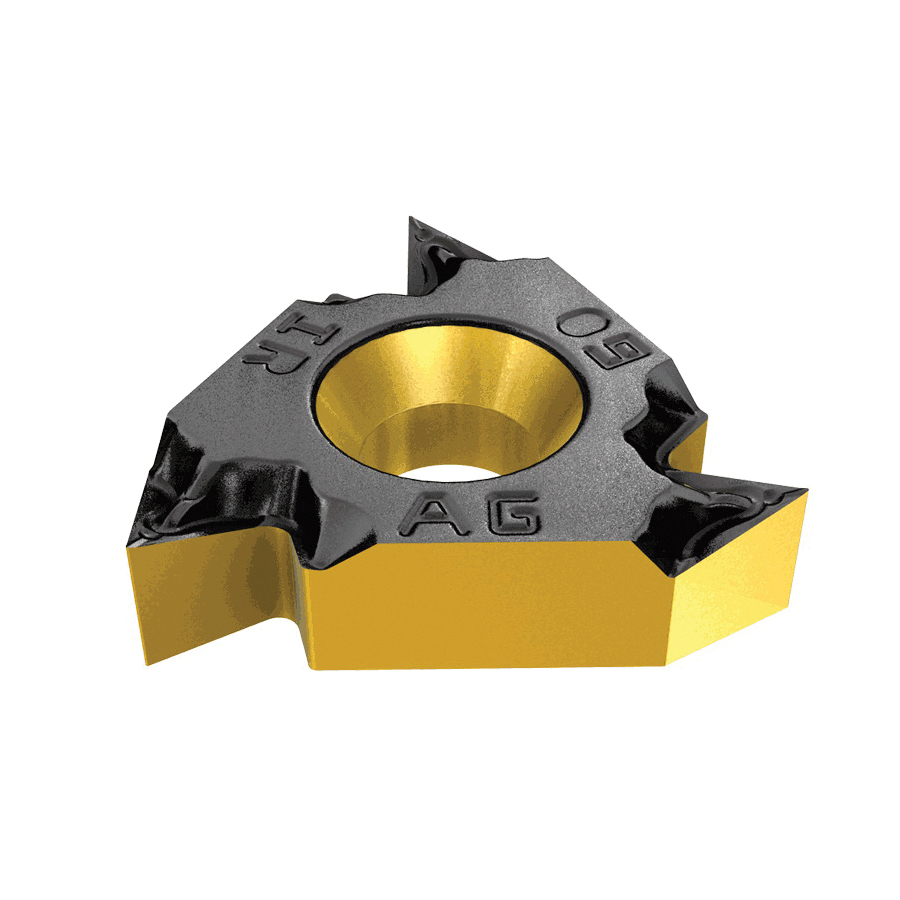

Iscar 5902104 ISCARTHREAD Laydown Threading Insert, 11ILA Insert, Triangular Shape, 16 to 48 TPI, Internal Thread, 60 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Left Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5902104
$20.82 EA
Factory Order
Estimated to ship in 14 days
QTY:

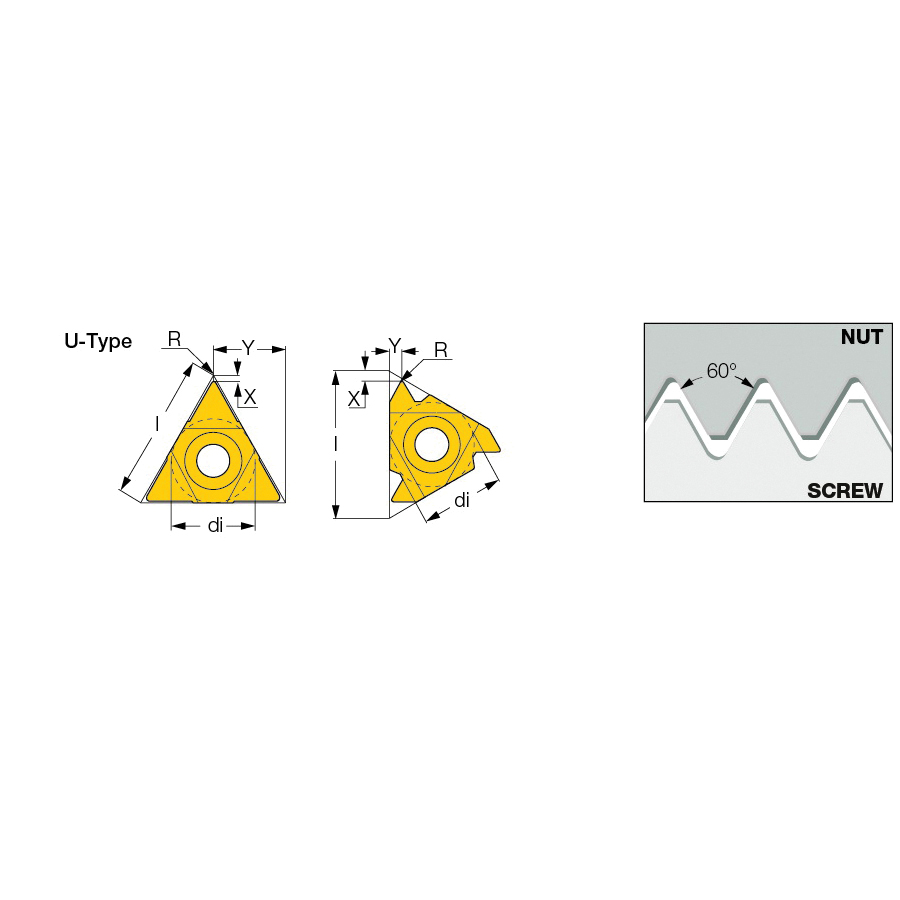

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 11ILA Insert, 11 Insert, Triangular Shape, Internal Thread, 60 deg Partial Profile Thread Standard, 0.5 to 1.5 mm Pitch, 16 to 48 Threads per Inch, 6.35 mm Inscribed Circle, 3.2 mm Thickness, 11 mm Length, ISO Code: 11IL A 60 IC908, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Left Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationInternal Thread Milling, Internal Threading and General Industry
Corner Radius0.05 mm
Cutting DirectionLeft Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size11
Insert Style11ILA
ISO Code11IL A 60 IC908
Length11 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch0.5 to 1.5 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.2 mm
Thread Standard60 deg Partial Profile
Thread TypeInternal
Threads per Inch16 to 48
TypeLaydown
