Iscar ISCAR 5901954

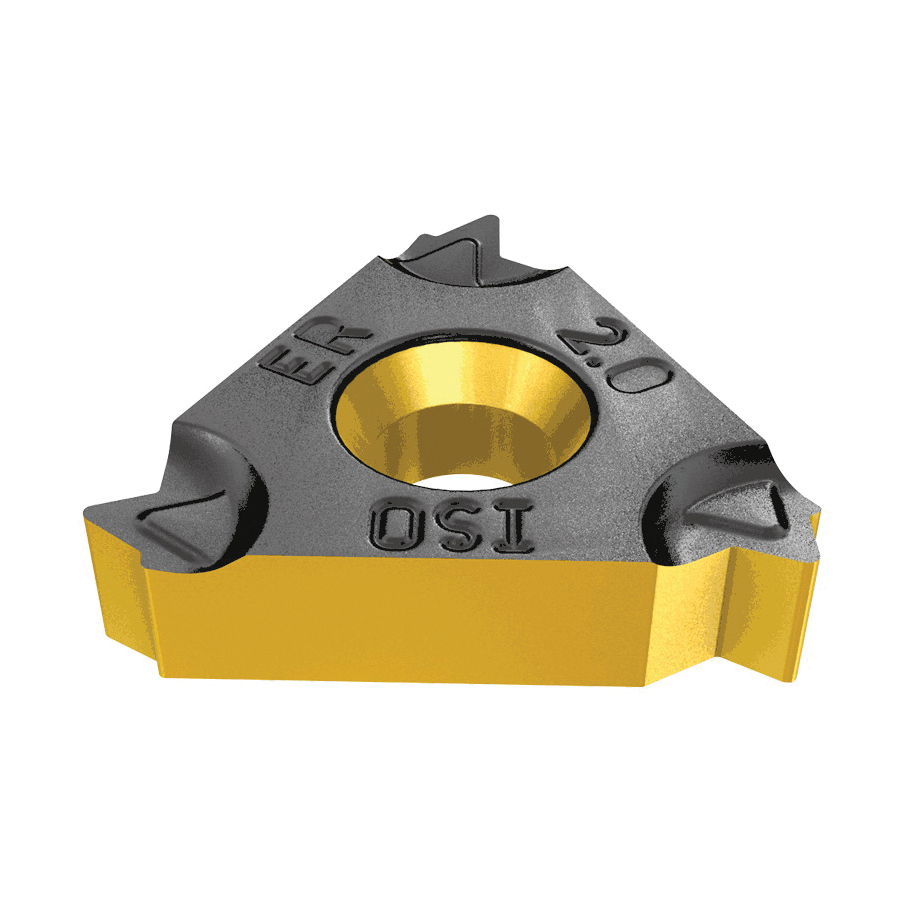

Iscar 5901954 ISCARTHREAD Laydown Threading Insert, 16ER Insert, Triangular Shape, External Thread, ISO/Metric Thread, 2 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5901954
$20.82 EA
Factory Order
Estimated to ship in 14 days
QTY:

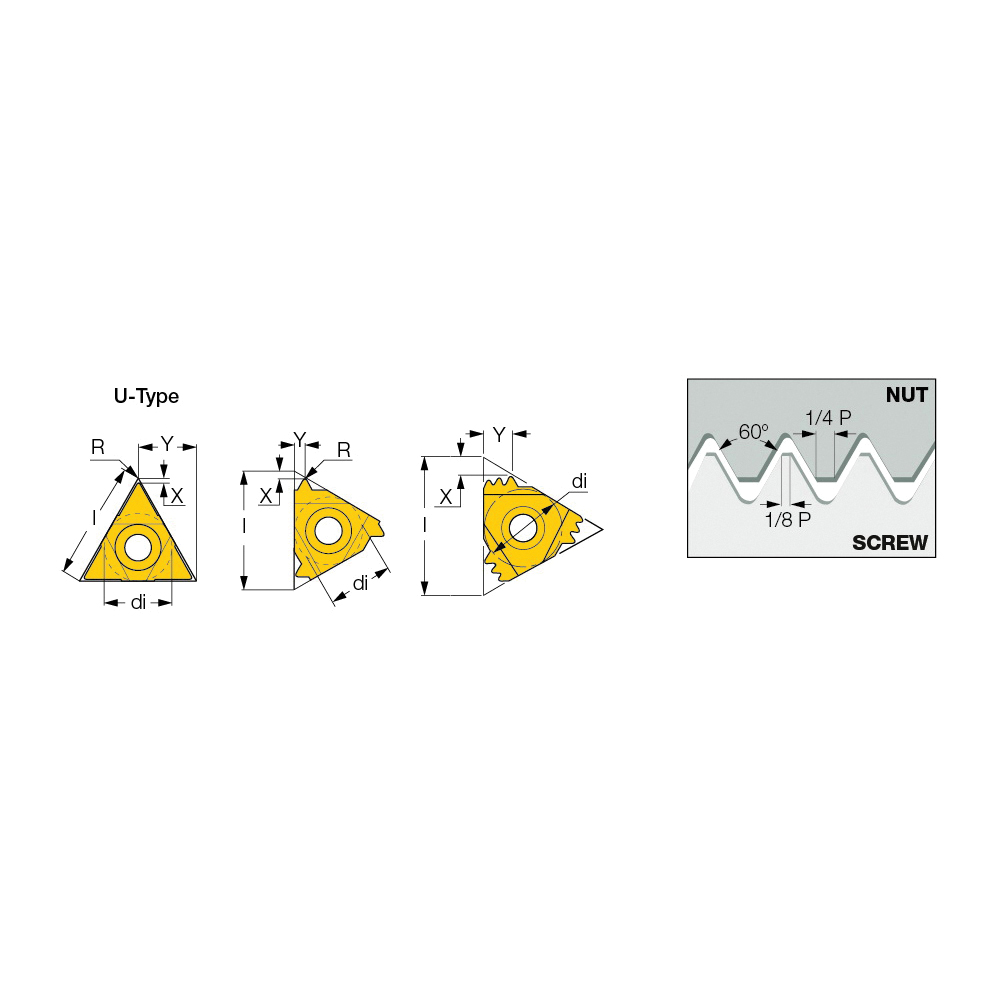

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ER Insert, 16 Insert, Triangular, External, ISO/Metric, 2 mm Pitch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ER 2.00 ISO IC908, 0.25 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Threading and External Thread Milling
Corner Radius0.25 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ER
ISO Code16ER 2.00 ISO IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch2 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread StandardISO/Metric
Thread TypeExternal
TypeLaydown
