Iscar ISCAR 5901944

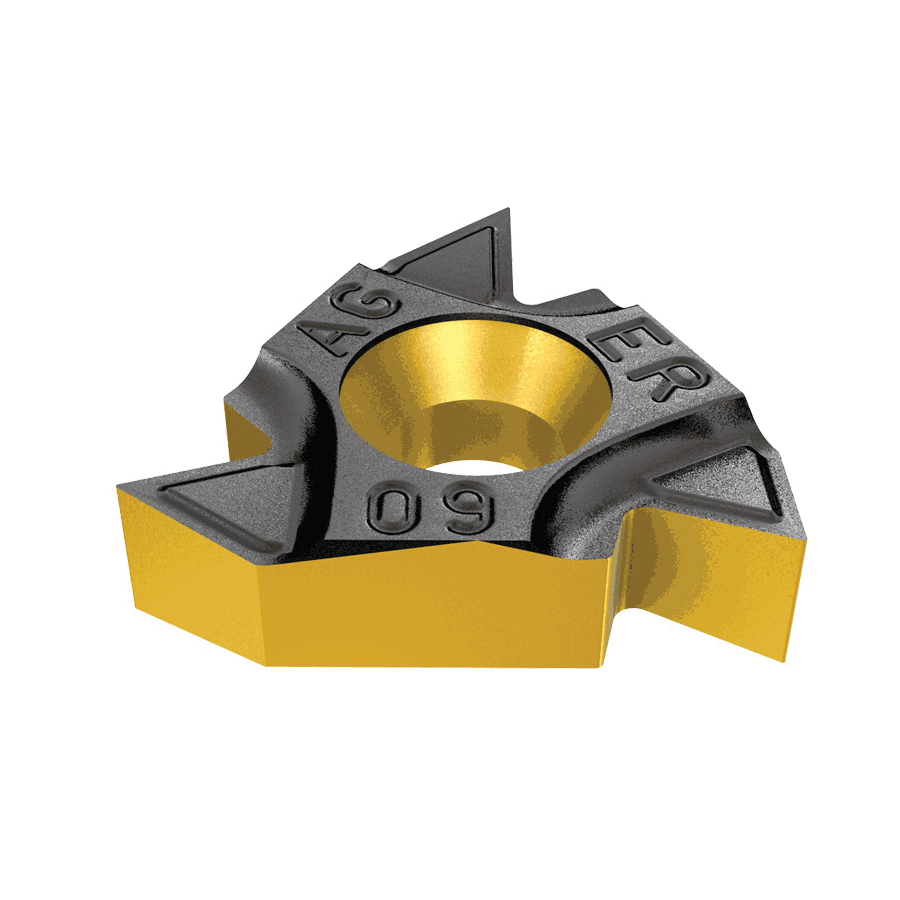

Iscar 5901944 ISCARTHREAD Laydown Threading Insert, 16ERA Insert, Triangular Shape, 16 to 48 TPI, External Thread, 60 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 5901944
$20.82 EA
Factory Order
Estimated to ship in 14 days
QTY:

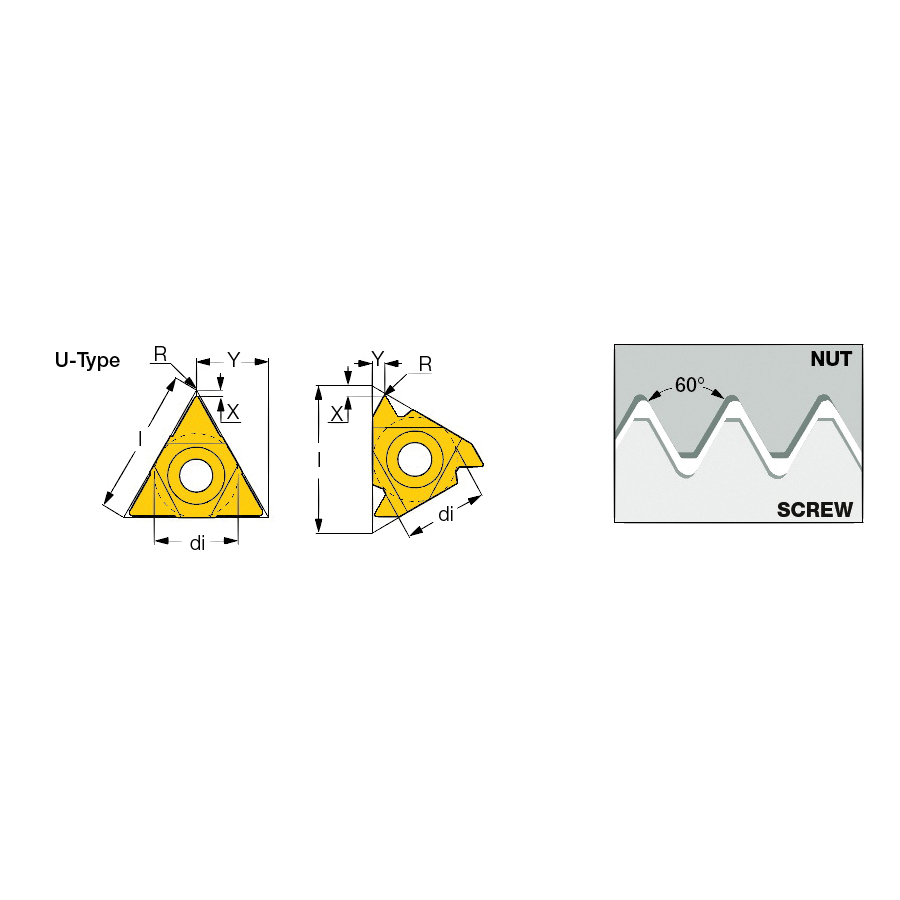

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ERA Insert, 16 Insert, Triangular Shape, External Thread, 60 deg Partial Profile Thread Standard, 0.5 to 1.5 mm Pitch, 16 to 48 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ER A 60 IC908, B Chipbreaker, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Thread Milling, External Threading and General Industry
ChipbreakerB
Corner Radius0.05 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ERA
ISO Code16ER A 60 IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Pitch0.5 to 1.5 mm
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread Standard60 deg Partial Profile
Thread TypeExternal
Threads per Inch16 to 48
TypeLaydown
