Iscar ISCAR 5901939

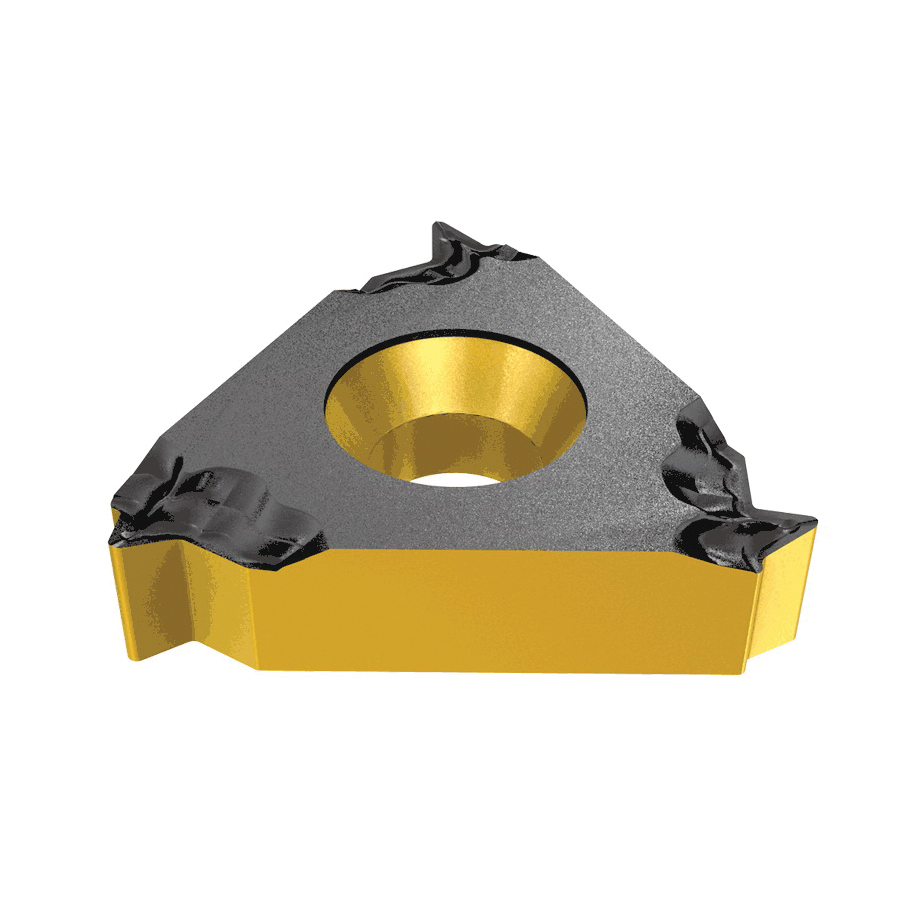

Iscar 5901939 ISCARTHREAD Laydown Threading Insert, 16IR Insert, 11.5 TPI, Internal Thread, NPT Thread, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: C1, C2, C6, C7
Invoice description:
16ir 11.5 Npt Ic908
Factory Order
Iscar Laydown Threading Insert, Series: ISCARTHREAD, 16IR Insert, Internal Thread, NPT Thread Standard, 11.5 Threads per Inch, 3/8 in Inscribed Circle, 0.143 in Thickness, ISO Code: 16IR 11.5 NPT, 0.09 mm Corner Radius, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: C1, C2, C6, C7
Specifications
Corner Radius0.09 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Inscribed Circle3/8 in
Insert Style16IR
ISO Code16IR 11.5 NPT
Manufacturers GradeIC908
MaterialCarbide
Material GradeC1, C2, C6, C7
SeriesISCARTHREAD
Thickness0.143 in
Thread StandardNPT
Thread TypeInternal
Threads per Inch11.5
Additional Information
Country of OriginIL
