Iscar ISCAR 5901932

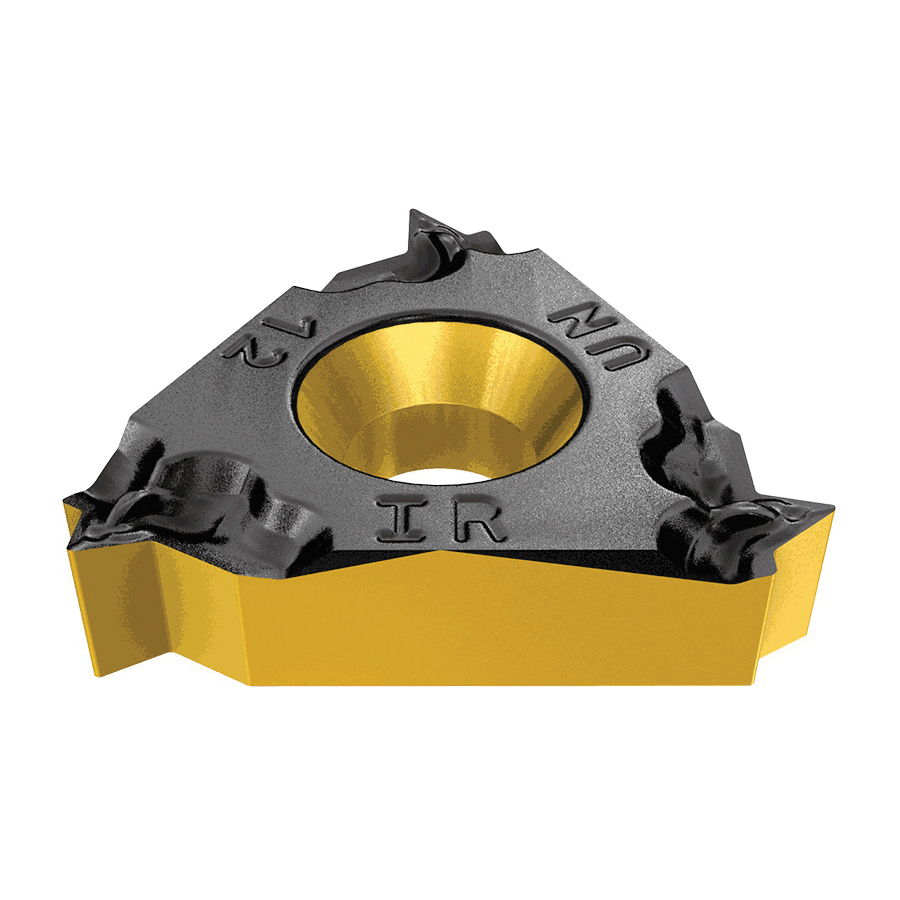

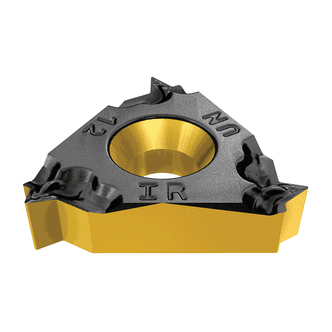

Iscar 5901932 ISCARTHREAD Laydown Threading Insert, 16IR Insert, Triangular Shape, 12 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S
Invoice description:
16ir 12 Un Ic908
Pack Size: 5
UNSPSC:
23242107
Manufacturer PN: 5901932
$21.41 EA
Factory OrderEstimated to ship in 14 days
Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16IR Insert, 16 Insert, Triangular Shape, Internal Thread, UN Thread Standard, 12 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16IR 12 UN IC908, 0.12 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Threading and External Thread Milling
Corner Radius0.12 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16IR
ISO Code16IR 12 UN IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread StandardUN
Thread TypeInternal
Threads per Inch12
TypeLaydown
