Iscar ISCAR 5901572

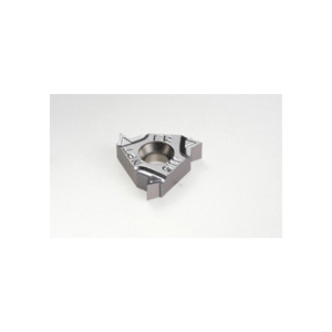

Iscar 5901572 ISCARTHREAD Laydown Threading Insert, 16ERM Insert, Triangular Shape, 11.5 TPI, External Thread, NPT Thread, Right Hand Cutting, Manufacturers Grade: IC908, Material Grade: H, K, M, P, S

Invoice description: 16erm 11.5 Npt Ic908

UNSPSC: 23242107
Manufacturer PN: 5901572
$17.89 EA
Factory Order
Estimated to ship in 14 days
QTY:

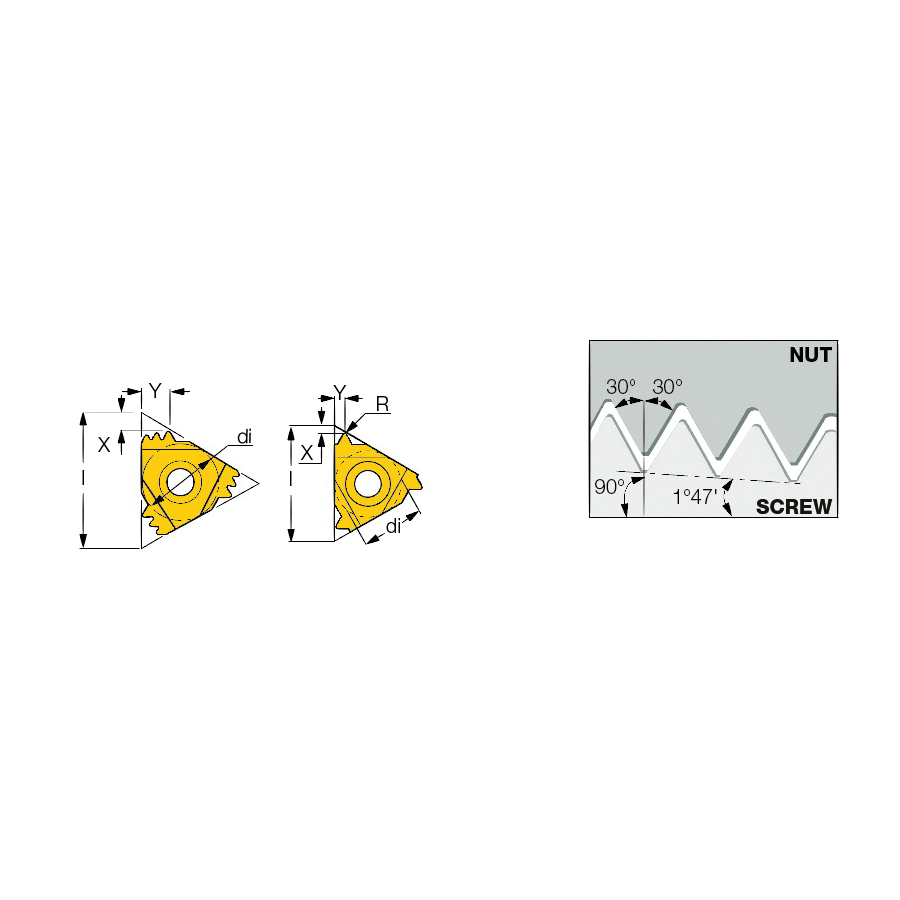

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ERM Insert, 16 Insert, Triangular Shape, External Thread, NPT Thread Standard, 11.5 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ERM 11.5 NPT IC908, M Chipbreaker, 0.09 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Thread Milling and External Threading
ChipbreakerM
Corner Radius0.09 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size16
Insert Style16ERM
ISO Code16ERM 11.5 NPT IC908
Length16.49 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesISCARTHREAD
ShapeTriangular
Thickness3.63 mm
Thread StandardNPT
Thread TypeExternal
Threads per Inch11.5
TypeLaydown

Additional Information

Standards/ApprovalANSI/ASME B1.20.1-1983
Country of OriginIS
