Sandvik Coromant SANC 6971892
Sandvik Coromant 6971892 CoroMill 490 Milling Insert, ANSI Code: 490R-140408M-PL 1130, 490R/L..M-PL Insert, 140408 Insert, Carbide, Manufacturers Grade: 1130, Squared Shape, Material Grade: M, P
Invoice description:
Ins 490r-140408m-pl 1130
Factory Order

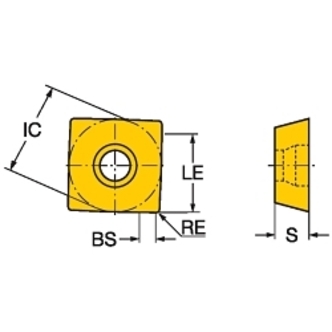

Sandvik Coromant Milling Insert, Series: CoroMill 490, 490R/L..M-PL Insert, 140408 Insert, Squared, 0.543 in Inscribed Circle, 0.154 in Thickness, 0.543 in Width, 0.543 in Length, PL Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturers Grade: 1130, ANSI Code: 490R-140408M-PL 1130, ISO Code: 490R-140408M-PL 1130, Right Hand, Carbide, PVD-AlTiCrN Coated, Material Grade: M, P, Steel and Stainless Steel Material Application
Specifications
ApplicationLight Applications
ANSI Code490R-140408M-PL 1130
ChipbreakerPL
Corner Radius0.031 in
FinishPVD-AlTiCrN Coated
Hand of InsertRight
Hole Diameter0.1614 in
Inscribed Circle0.543 in
Insert Size140408
Insert Style490R/L..M-PL
ISO Code490R-140408M-PL 1130
Lead Angle90 deg
Length0.543 in
Manufacturers Grade1130
MaterialCarbide
Material ApplicationSteel and Stainless Steel
Material GradeM, P
RakePositive
SeriesCoroMill 490
ShapeSquared
Thickness0.154 in
Width0.543 in
Additional Information
Country of OriginSE
Sds
