Sandvik Coromant SANC 7564339

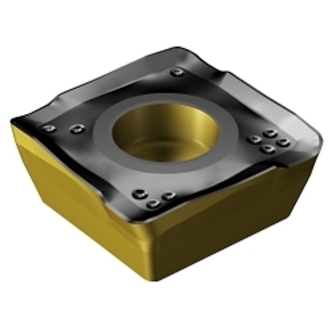

Sandvik Coromant 7564339 CoroMill 490 Milling Insert, ANSI Code: 490R-08T308M-PM 4340, 490R/L..M-PM Insert, 08T308 Insert, Carbide, Manufacturers Grade: 4340, Squared Shape, Material Grade: K, M, P
Invoice description:
Ins 490r-08t308m-pm 4340
Factory Order
Sandvik Coromant Milling Insert, Series: CoroMill 490, 490R/L..M-PM Insert, 08T308 Insert, Squared, 0.335 in Inscribed Circle, 0.13 in Thickness, 0.335 in Width, 0.335 in Length, PM Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.11 in Hole Dia, Manufacturers Grade: 4340, ANSI Code: 490R-08T308M-PM 4340, ISO Code: 490R-08T308M-PM 4340, Right Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, M, P, Cast Iron, Stainless Steel and Steel Material Application
Features
- 4 cutting edges
Specifications
ApplicationFor medium applications
ANSI Code490R-08T308M-PM 4340
ChipbreakerPM
Corner Radius0.031 in
FinishCVD-TiCN+Al2O3+TiN Coated
Hand of InsertRight
Hole Diameter0.11 in
Inscribed Circle0.335 in
Insert Size08T308
Insert Style490R/L..M-PM
ISO Code490R-08T308M-PM 4340
Lead Angle90 deg
Length0.335 in
Manufacturers Grade4340
MaterialCarbide
Material ApplicationCast Iron, Stainless Steel and Steel
Material GradeK, M, P
RakePositive
SeriesCoroMill 490
ShapeSquared
Thickness0.13 in
Width0.335 in
Additional Information
Country of OriginUS
