Sandvik Coromant SANC 7564382

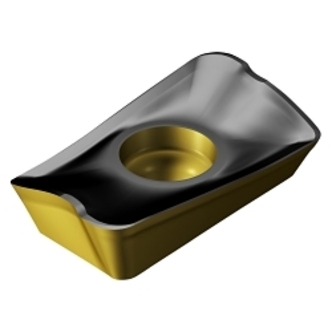

Sandvik Coromant 7564382 CoroMill 390 Milling Insert, ANSI Code: R390-17 04 08M-PM 4340, R390..M-PM Insert, 170408 Insert, Carbide, Manufacturers Grade: 4340, Rectangle Shape, Material Grade: K, M, P
Invoice description:
R390-17 04 08m Pm 4340 Loc 10066187
In stock
(14)
Sandvik Coromant Milling Insert, Series: CoroMill 390, R390..M-PM Insert, 170408 Insert, Rectangle Shape, 0.378 in Inscribed Circle, 0.187 in Thickness, 0.378 in Width, PM Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.161 in Diameter Hole, Manufacturers Grade: 4340, ANSI Code: R390-17 04 08M-PM 4340, ISO Code: R390-17 04 08M-PM 4340, Right Hand of Insert, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, M, P, Cast Iron, Stainless Steel and Steel Material Application
Features
- 2 cutting edges
- Cemented carbide and PCD grades
- The light cutting insert geometries and high performance grades of are designed for low cutting forces and vibration-free machining for secure milling in all materials
Specifications
ApplicationFor medium applications
ANSI CodeR390-17 04 08M-PM 4340
ChipbreakerPM
Corner Radius0.031 in
FinishCVD-TiCN+Al2O3+TiN Coated
Hand of InsertRight
Hole Diameter0.161 in
Inscribed Circle0.378 in
Insert Size170408
Insert StyleR390..M-PM
ISO CodeR390-17 04 08M-PM 4340
Lead Angle90 deg
Manufacturers Grade4340
MaterialCarbide
Material ApplicationCast Iron, Stainless Steel and Steel
Material GradeK, M, P
RakePositive
SeriesCoroMill 390
ShapeRectangle
Thickness0.187 in
Width0.378 in
Additional Information
Country of OriginUS
