Sandvik Coromant SANC 5758936

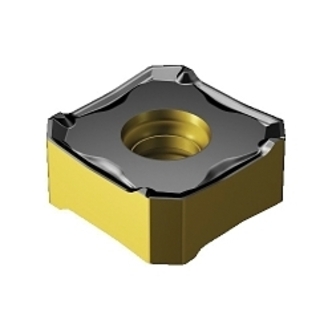

Sandvik Coromant 5758936 CoroMill 345 Milling Insert, ANSI Code: 345R-1305M-KM 3220, 345R/L..M-KM Insert, 1305 Insert, Carbide, Manufacturers Grade: 3220, Squared Shape, Material Grade: K
In stock
(10)
Sandvik Coromant Milling Insert, Series: CoroMill 345, 345R/L..M-KM Insert, 1305 Insert, Squared, 0.512 in Inscribed Circle, 0.199 in Thickness, 0.512 in Width, 0.512 in Length, KM Chipbreaker, 0.031 in Corner Radius, 45 deg Lead Angle, 0.189 in Hole Dia, Manufacturers Grade: 3220, ANSI Code: 345R-1305M-KM 3220, ISO Code: 345R-1305M-KM 3220, Right Hand, Carbide, MTCVD-TiCN+Al2O3+TiN Coated, Material Grade: K, Cast Iron Material Application
Specifications
ApplicationMedium Applications
ANSI Code345R-1305M-KM 3220
ChipbreakerKM
Corner Radius0.031 in
FinishMTCVD-TiCN+Al2O3+TiN Coated
Hand of InsertRight
Hole Diameter0.189 in
Inscribed Circle0.512 in
Insert Size1305
Insert Style345R/L..M-KM
ISO Code345R-1305M-KM 3220
Lead Angle45 deg
Length0.512 in
Manufacturers Grade3220
MaterialCarbide
Material ApplicationCast Iron
Material GradeK
SeriesCoroMill 345
ShapeSquared
Thickness0.199 in
Width0.512 in
