Sandvik Coromant SANC 6536296

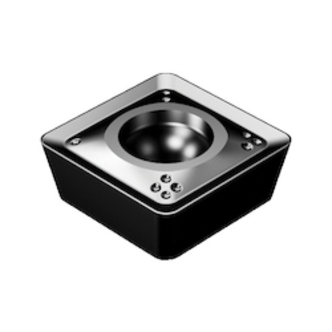

Sandvik Coromant 6536296 CoroMill 495 Milling Insert, ANSI Code: 495-09T3M-MM 1040, 495-MM Insert, 09T3m Insert, Carbide, Manufacturers Grade: 1040, Squared Shape, Material Grade: M, S
Factory Order
Sandvik Coromant Milling Insert, Series: CoroMill 495, 495-MM Insert, 09T3m Insert, Squared, 0.354 in Inscribed Circle, 0.138 in Thickness, 0.354 in Width, 0.354 in Length, ML Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.134 in Hole Dia, Manufacturers Grade: 1040, ANSI Code: 495-09T3M-MM 1040, ISO Code: 495-09T3M-MM 1040, Neutral Hand, Carbide, PVD-TiAlN2 Coated, Material Grade: M, S, Austenitic, Ferritic and Martensitic Stainless Steel, Heat Resistant Alloys and Titanium Alloys Material Application
Specifications
ApplicationMedium Applications
ANSI Code495-09T3M-MM 1040
ChipbreakerML
Corner Radius0.031 in
FinishPVD-TiAlN2 Coated
Hand of InsertNeutral
Hole Diameter0.134 in
Inscribed Circle0.354 in
Insert Size09T3m
Insert Style495-MM
ISO Code495-09T3M-MM 1040
Lead Angle90 deg
Length0.354 in
Manufacturers Grade1040
MaterialCarbide
Material ApplicationAustenitic, Ferritic and Martensitic Stainless Steel, Heat Resistant Alloys and Titanium Alloys
Material GradeM, S
RakePositive
SeriesCoroMill 495
ShapeSquared
Thickness0.138 in
Width0.354 in
