Sandvik Coromant SANC 6906909

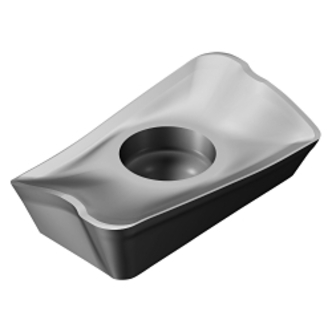

Sandvik Coromant 6906909 CoroMill 390 Milling Insert, ANSI Code: R390-11 T3 04M-PM 1130, R390..M-PM Insert, 11T304 Insert, Carbide, Manufacturers Grade: 1130, Rectangle Shape, Material Grade: M, P
Factory Order
Sandvik Coromant Milling Insert, Series: CoroMill 390, R390..M-PM Insert, 11T304 Insert, Rectangle Shape, 0.268 in Inscribed Circle, 0.141 in Thickness, 0.268 in Width, 0.4507 in Length, PM Chipbreaker, 0.0157 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Diameter Hole, Manufacturers Grade: 1130, ANSI Code: R390-11 T3 04M-PM 1130, ISO Code: R390-11 T3 04M-PM 1130, Right Hand of Insert, Carbide, PVD-AlTiCrN Coated, Material Grade: M, P, Steel and Stainless Steel Material Application
Specifications
ApplicationMedium Applications
ANSI CodeR390-11 T3 04M-PM 1130
ChipbreakerPM
Corner Radius0.0157 in
FinishPVD-AlTiCrN Coated
Hand of InsertRight
Hole Diameter0.1102 in
Inscribed Circle0.268 in
Insert Size11T304
Insert StyleR390..M-PM
ISO CodeR390-11 T3 04M-PM 1130
Lead Angle90 deg
Length0.4507 in
Manufacturers Grade1130
MaterialCarbide
Material ApplicationSteel and Stainless Steel
Material GradeM, P
RakePositive
SeriesCoroMill 390
ShapeRectangle
Thickness0.141 in
Width0.268 in
