Sandvik Coromant SANC 5888487

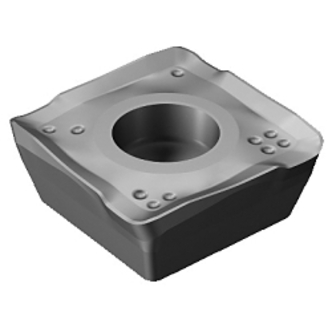

Sandvik Coromant 5888487 CoroMill 490 Milling Insert, ANSI Code: 490R-08T308E-MM 1040, 490R/L..E-MM Insert, 08T308 Insert, Carbide, Manufacturers Grade: 1040, Squared Shape, Material Grade: M
Invoice description:
Ins 490r-08t308e-mm 1040
Factory Order
Sandvik Coromant Milling Insert, Series: CoroMill 490, 490R/L..E-MM Insert, 08T308 Insert, Squared, 0.335 in Inscribed Circle, 0.13 in Thickness, 0.335 in Width, 0.335 in Length, MM Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturers Grade: 1040, ANSI Code: 490R-08T308E-MM 1040, ISO Code: 490R-08T308E-MM 1040, Right Hand, Carbide, PVD-TiAlN2 Coated, Material Grade: M, Stainless Steel Material Application
Specifications
ApplicationMedium
ANSI Code490R-08T308E-MM 1040
ChipbreakerMM
Corner Radius0.031 in
FinishPVD-TiAlN2 Coated
Hand of InsertRight
Hole Diameter0.1102 in
Inscribed Circle0.335 in
Insert Size08T308
Insert Style490R/L..E-MM
ISO Code490R-08T308E-MM 1040
Lead Angle90 deg
Length0.335 in
Manufacturers Grade1040
MaterialCarbide
Material ApplicationStainless Steel
Material GradeM
RakePositive
SeriesCoroMill 490
ShapeSquared
Thickness0.13 in
Width0.335 in
Additional Information
Country of OriginSE
Sds
