DeWALT RAWL 7404SD1

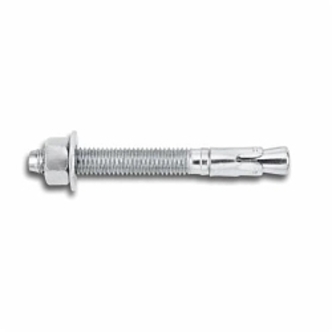

DeWALT 7404SD1 SD1 Expansion Wedge Anchor, 1/4 in Dia, 3-1/4 in OAL, 2-1/4 in L Thread, Carbon Steel, Zinc Plated
Invoice description:
Anchor Wedge Type 02-000 018
UPC: 075352775913
UNSPSC:
31162102
Manufacturer PN: 7404SD1
Factory OrderEstimated to ship in 14 days
--Price Unavailable--
DeWALT, 7404SD1, Wedge Anchor, Expansion, Series: SD1, 1/4 in Diameter, 3-1/4 in Overall Length, 2-1/4 in Thread Length, Carbon Steel, Zinc Plated, 1-1/8 in Minimum Embedment Depth, 1/4 in Drill, 1/4-20 Thread, Hex Head, UNC Thread, 1-7/8 in Maximum Work Thickness, 1255 lb Shear Strength, 1435 lb Tensile Strength
Features
- Consistent performance in high and low strength concrete
- Length ID code and identifying marking stamped on head of each Anchor
- Ultimate load capacity: 1320 lb tensile strength when embedded in 2500 psi, 1435 lb tensile strength when embedded in 3000 psi and 1660 lb tensile strength when embedded in 4000 psi compressive strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
Specifications
ApplicationStructural Connections, Interior Applications, Low Level Corrosion Environment, Tension Zone Applications, Cable Trays And Strut, Pipe Supports, Fire Sprinklers, Seismic and Wind Loading
Diameter1/4 in
Drill Size1/4 in
FinishZinc Plated
Head TypeHex
MaterialCarbon Steel
Maximum Work Thickness1-7/8 in
Minimum Embedment Depth1-1/8 in
Overall Length3-1/4 in
SeriesSD1
Shear Strength1255 lb
Tensile Strength1435 lb
Thread Length2-1/4 in
Thread Size1/4-20
Thread TypeUNC
TypeExpansion
Additional Information
IncludesNut and Washer
Standards/ApprovalICC-ES AC01, ESR-2818/2966|UL Listed|2015 IBC/IRC|
Country of OriginUS
