DeWALT PWRS 7413SD1-PWR

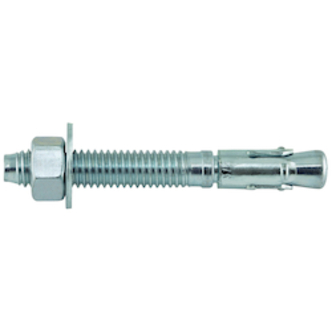

DeWALT 7413SD1-PWR SD1 Expansion Wedge Anchor, 3/8 in Dia, 3 in OAL, 1-5/8 in L Thread, Carbon Steel, Zinc Plated
Invoice description:
Anchor Wedge 3/8"x3" Power-stud? 50/bx
In stock
(2)
DeWALT, 7413SD1-PWR, Expansion Wedge Anchor, Series: SD1, 3/8 in Diameter, 3 in Overall Length, 1-5/8 in Thread Length, Carbon Steel, Zinc Plated, 1-5/8 in Minimum Embedment Depth, 3/8 in Drill, 3/8-16 Thread, Threaded Stud Head, UNC Thread, 1 in Maximum Work Thickness, 2540 lb Shear Strength, 3100 lb Tensile Strength
Features
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- Nominal drill bit diameter same as Anchor diameter
- Length ID code and identifying marking stamped on head of each Anchor
- Ultimate load capacity - 2240 lb tensile strength when embedded in 2500 psi, 2685 lb tensile strength when embedded in 3000 psi, 3100 lb tensile strength when embedded in 4000 psi normal-weight concrete
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
Specifications
ApplicationStructural Connections, Beam, Column Anchorage, Safety Related Attachments, Interior Applications, Low Level Corrosion Environment, Tension Zone Applications, Cable Trays and Strut, Pipe Supports and Fire Sprinkler Applications
Diameter3/8 in
Drill Size3/8 in
FinishZinc Plated
Head TypeThreaded Stud
MaterialCarbon Steel
Maximum Work Thickness1 in
Minimum Embedment Depth1-5/8 in
Overall Length3 in
SeriesSD1
Shear Strength2540 lb
Tensile Strength3100 lb
Thread Length1-5/8 in
Thread Size3/8-16
Thread TypeUNC
TypeExpansion
Additional Information
IncludesCarbon Steel Expansion Clip, Nut and Washer
Standards/Approval2015 IBC/IRC|2012 IBC/IRC|2009 IBC/IRC|ACI 318-14
Country of OriginCN
