DeWALT PWRS 7432SD1-PWR

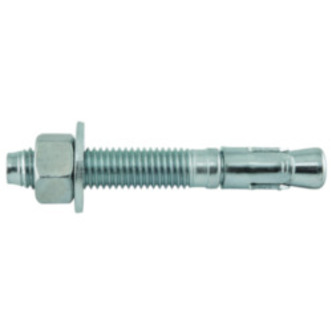

DeWALT 7432SD1-PWR SD1 Expansion Wedge Anchor, 5/8 in Dia, 4-1/2 in OAL, 2-1/2 in L Thread, Carbon Steel, Zinc Plated

Invoice description: Anchor Wedge 5/8"x4-1/2" Power-stud? 25/bx

UPC: 075352776194

UNSPSC: 31162102

Manufacturer PN: 7432SD1-PWR

^$49.86 BX

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

DeWALT, 7432SD1-PWR, Wedge Anchor, Expansion, Series: SD1, 5/8 in Diameter, 4-1/2 in Overall Length, 2-1/2 in Thread Length, Carbon Steel, Zinc Plated, 2-3/4 in Minimum Embedment Depth, 5/8 in Drill, 5/8-11 Thread, Threaded Stud Head, UNC Thread, 1-1/8 in Maximum Work Thickness, 6815 lb Shear Strength, 6285 lb Tensile Strength

Features
Consistent performance in high and low strength concrete
Nominal drill bit size is the same as the anchor diameter
Anchor can be installed through standard fixture holes
Length ID code and identifying marking stamped on head of each anchor
Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
Ultimate load capacity: 4960 lb tensile strength when embedded in 2500 psi, 5440 lb tensile strength when embedded in 3000 psi and 6285 lb tensile strength when embedded in 4000 psi compressive strength concrete

Specifications

ApplicationStructural Connections, Beam, Column Anchorage, Safety Related Attachments, Interior Applications, Low Level Corrosion Environment, Tension Zone Applications, Cable Trays and Strut, Pipe Supports and Fire Sprinkler Applications

Diameter5/8 in

Drill Size5/8 in

FinishZinc Plated

Head TypeThreaded Stud

MaterialCarbon Steel

Maximum Work Thickness1-1/8 in

Minimum Embedment Depth2-3/4 in

Overall Length4-1/2 in

SeriesSD1

Shear Strength6815 lb

Tensile Strength6285 lb

Thread Length2-1/2 in
