DeWALT PWRS 7414SD1-PWR

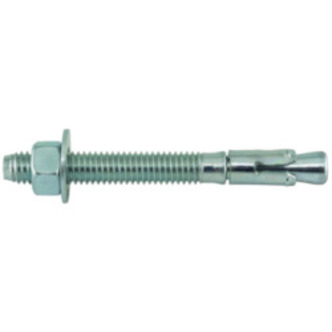

DeWALT 7414SD1-PWR SD1 Expansion Wedge Anchor, 3/8 in Dia, 3-1/2 in OAL, 2-1/8 in L Thread, Carbon Steel, Zinc Plated
Invoice description:
Anchor Wedge 3/8"x3-1/2" Power-stud? 50/bx
In stock
(13)
DeWALT, 7414SD1-PWR, Wedge Anchor, Expansion, Series: SD1, 3/8 in Diameter, 3-1/2 in Overall Length, 2-1/8 in Thread Length, Carbon Steel, Zinc Plated, 1-5/8 in Minimum Embedment Depth, 3/8 in Drill, 3/8-16 Thread, Threaded Stud Head, UNC Thread, 1-1/2 in Maximum Work Thickness, 2540 lb Shear Strength, 3100 lb Tensile Strength
Features
- Consistent performance in high and low strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
- Ultimate load capacity: 2240 lb tensile strength when embedded in 2500 psi, 2685 lb tensile strength when embedded in 3000 psi and 3100 lb tensile strength when embedded in 4000 psi compressive strength concrete
Specifications
ApplicationStructural Connections, Beam, Column Anchorage, Safety Related Attachments, Interior Applications, Low Level Corrosion Environment, Tension Zone Applications, Cable Trays and Strut, Pipe Supports and Fire Sprinkler Applications
Diameter3/8 in
Drill Size3/8 in
FinishZinc Plated
Head TypeThreaded Stud
MaterialCarbon Steel
Maximum Work Thickness1-1/2 in
Minimum Embedment Depth1-5/8 in
Overall Length3-1/2 in
SeriesSD1
Shear Strength2540 lb
Tensile Strength3100 lb
Thread Length2-1/8 in
Thread Size3/8-16
Thread TypeUNC
TypeExpansion
Additional Information
IncludesCarbon Steel Expansion Clip, Nut and Washer
Standards/Approval2015 IBC/IRC|ACI 318-14 Chapter 17|ACI 318-11/08 A
Country of OriginCN
