DeWALT PWRS 7417SD1-PWR

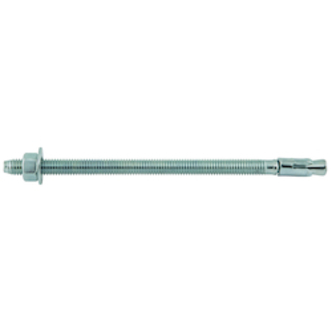

DeWALT 7417SD1-PWR SD1 Expansion Wedge Anchor, 3/8 in Dia, 7 in OAL, 5-5/8 in L Thread, Carbon Steel, Zinc Plated

Invoice description: Anchor Wedge 3/8"x7" Power-stud? 50/bx

UPC: 075352776033

UNSPSC: 31162102

Manufacturer PN: 7417SD1-PWR

^$70.76 BX

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

DeWALT, 7417SD1-PWR, Expansion Wedge Anchor, Series: SD1, 3/8 in Diameter, 7 in Overall Length, 5-5/8 in Thread Length, Carbon Steel, Zinc Plated, 1-5/8 in Minimum Embedment Depth, 3/8 in Drill, 3/8-16 Thread, Threaded Stud Head, UNC Thread, 5 in Maximum Work Thickness, 2540 lb Shear Strength, 3100 lb Tensile Strength

Features
Consistent performance in high and low strength concrete
Anchor can be installed through standard fixture holes
Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
Nominal drill bit diameter same as Anchor diameter
Length ID code and identifying marking stamped on head of each Anchor
Ultimate load capacity - 2240 lb tensile strength when embedded in 2500 psi, 2685 lb tensile strength when embedded in 3000 psi, 3100 lb tensile strength when embedded in 4000 psi normal-weight concrete
Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials

Specifications

ApplicationStructural Connections, Beam, Column Anchorage, Safety Related Attachments, Interior Applications, Low Level Corrosion Environment, Tension Zone Applications, Cable Trays and Strut, Pipe Supports and Fire Sprinkler Applications

Diameter3/8 in

Drill Size3/8 in

FinishZinc Plated

Head TypeThreaded Stud

MaterialCarbon Steel

Maximum Work Thickness5 in

Minimum Embedment Depth1-5/8 in

Overall Length7 in

SeriesSD1

Shear Strength2540 lb

Tensile Strength3100 lb

Thread Length5-5/8 in
