KYOCERA KYO 8863344
KYOCERA TLM00091 2-Cutting Edge Indexable Turning Insert With 1-Sided Chipbreaker, Hole, 40 to 60 deg Countersink, ANSI Code: CCMT3251GKPR1725, CCMT Insert, Material Grade: P, M, #3251 Insert, Rhombic Shape, 09 Seat, Positive Rake, Neutral Cutting
Invoice description:
Ins Ccmt 32.51 Gk Pr1725 Ins Ccmt 32.51 Gk Pr1725
Factory Order

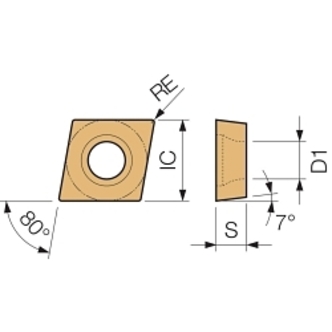

KYOCERA Indexable Turning Insert, 2-Cutting Edge, CCMT Insert, #3251 Insert, Rhombic Shape, 3/8 in Inscribed Circle, 5/32 in Thickness, 09 Seat, Positive Rake, GK Chipbreaker, 1/64 in Corner Radius, 0.1732 in Diameter Hole, Manufacturers Grade: PR1725, ANSI Code: CCMT3251GKPR1725, ISO Code: CCMT09T304GK, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, PVD-MEGACOAT NANO PLUS, Material Grade: P, M, For Use On: Carbon/Alloy Steel, Free-Cutting Steel and Stainless Steel
Features
- MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high quality surface finish in steel and stainless applications
- Good chip evacuation at wide range by breaker dot and wide chip pocket
Specifications
ApplicationExternal Turning, Facing, Boring and Internal Facing Applications
ANSI CodeCCMT3251GKPR1725
ChipbreakerGK
Corner Radius1/64 in
Cutting DirectionNeutral
FinishPVD-MEGACOAT NANO PLUS
For Use OnCarbon/Alloy Steel, Free-Cutting Steel and Stainless Steel
Hole Diameter0.1732 in
Included Angle80 deg
Inscribed Circle3/8 in
Insert Size#3251
Insert StyleCCMT
ISO CodeCCMT09T304GK
Manufacturers GradePR1725
MaterialCarbide
Material GradeP, M
RakePositive
Relief Angle7 deg
Seat Size09
ShapeRhombic
Thickness5/32 in
Type2-Cutting Edge
Additional Information
Standards/ApprovalECCN: EAR99
Country of OriginUS|JP|CN|K
